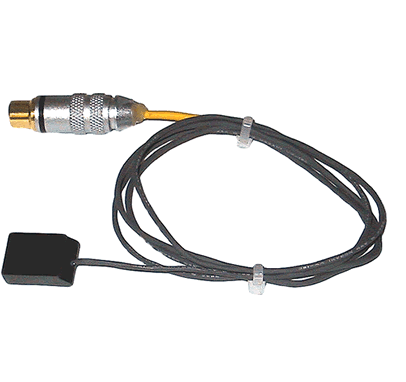

Audiomatica ACH-01 Accelerometer (7~11 mV/g, 35kHz)

Sensitivity: 7~11 mV/g, 9mV/g (typ)

Lower Frequency Limit(±3 dB limit):2(typ), 5 (max) Hz

Upper Frequency Limit(±3 dB limit): 10 (min), 20(typ) kHz

Dynamic Range: ±150g

Linearity:  1.0 %

Transverse Sensitivity:  2.0(typ), 5(max) %

Resonant Frequency: 35kHz

Supply Voltage:  3~40 Volts

Operating Temperature: -40~85 °C

Output Impedance:  20kΩ

Maximum Shock Level: 1000g

Weight ( Includes 40" cable and connector) Cable: 8grams

Detail

Datasheet
