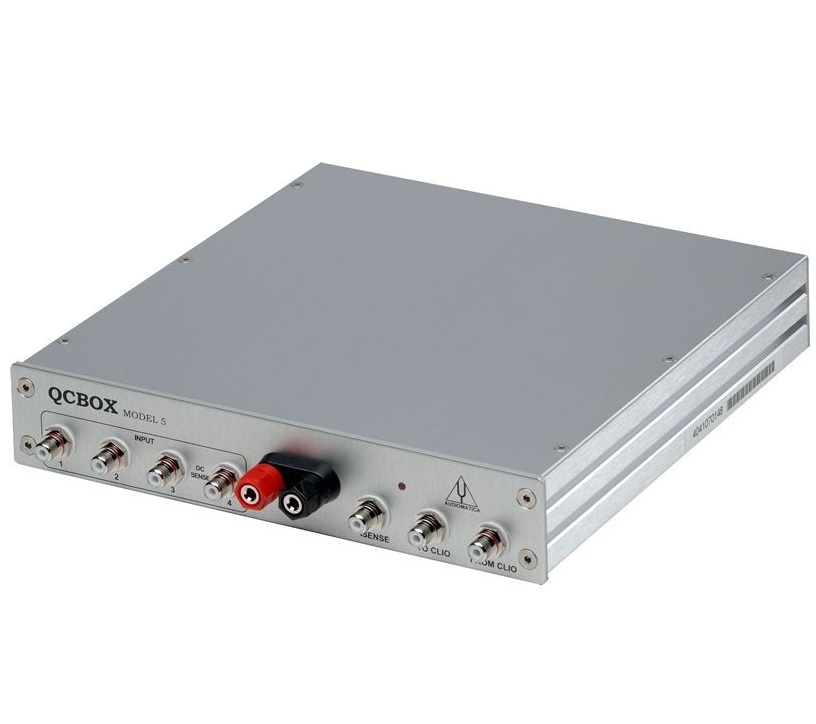

Audiomatica QCBOX MODEL 5 CLIOQC Amplifier, Switch & Test Box (±2.25 A)

Line/microphone input:

Number of inputs: 4

Phantom power: 0÷24V selectable

Dc measuring:

Isense DC current: ±2.25 A

DC IN 3: ±2.5 V

DC IN 4: ±5 V

DC voltage:

Output power: 50W (8 Ohm)

THD (1 kHz): 0.004%

DC over AC:: ±20 V

DIGITAL I/O:

Number of I/O: 6 OUT / 5 IN

Connector: DB25

General:

Control interface: USB

Dimensions: 23(w)x23(d)x4(h)cm

Weight: 1.4kg

Power supply: 150W 90÷240VAC

Accessories: AC Mains Cable, USB Cable, 3 X Audio cable.
