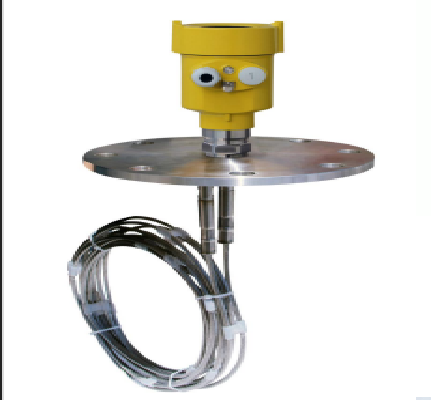

Auto Instrument ATRD 703 雷达液位计 (30m, - 0,1 ~ 4MPa)

Suitable for Medium: Solid powder

Explosion-proof Grade: Exia IIC T6 Ga/Exd ia IIC T6 Gb

Measuring Range:30m

Frequency: 500MHz-1.8GHz

Antenna: Double cable type antenna

Accuracy:±10mm

Process Temperature:(-40~150)℃

Process pressure:(-0.1~4)MPa

Signal output: (4~20)mA/HART

The Scene Display: Four LCD/Can be programmed

Power Source: Two-wire (DC24V)

Four-wire(DC24V/AC220V)

Shell: Aluminum /Plastic

Connection: Flange (optional) / Thread
