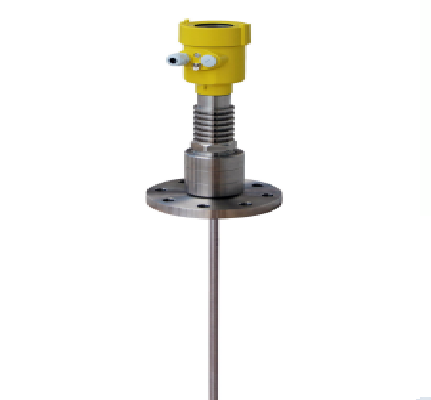

Auto Instrument ATRD 705 雷达液位计 (15m, -0.1~40MPa)

Suitable for Medium: Liquids, especially high temperatureand pressure environment of liquid

Explosion-proof Grade: Exia IIC T6 Ga/Exd ia IIC T6 Gb MeasuringRange: 15m

Frequency: 500MHz-1.8GHz

Antenna: Single cable or single rod antenna

Accuracy: ±10mm

Process Temperature:(-200~400)℃

Process pressure:(-0.1~40)MPa

Signal output:(4~20)mA/HART

The Scene Display: Four LCD/Can be programmed

Power Source: Two-wire (DC24V) Four-wire(DC24V/AC220V)

Shell: Aluminum /Plastic

Connection: Thread / Flange (optional)
