AZ 77535 手持式二氧化碳侦测计

Dải đo

CO2: 0 ~ 9999 ppm,(5001 ~ 9999 ppm ngoài dải thang đo)

Nhiệt độ: -10 ~ 60oC (14 ~ 140oF)

Độ ẩm 0,1 ~ 99,9% RH

Độ phân giải 1 ppm, 0,1oC /oF

Độ chính xác CO2    ± 30 ppm ± 5% giá trị đọc (0 ~ 5000ppm)

              Các phạm vi khác không được chỉ định

Nhiệt độ      ±0,6oC / ±0,9oF

Độ ẩm         ±3%RH (at 25oC, 10 ~ 90% RH), ±5%RH (at 25oC,các thang khác)

CO2            < 30 giây (90% thay đổi theo bước)

Tair        < 2 phút (90% thay đổi theo bước)

Humidity     < 10 minutes (90% thay đổi theo bước)

Kích thước màn hình LCD (mm, Chiều cao (C) x Chiều rộng (R)):26 x 44

Điều kiện hoạt động: 0 ~ 50oC, 0 ~ 95% RH (tránh ngưng tụ)

Điều kiện bảo quản   -20 ~ 50°C, 0 ~ 95% RH (tránh ngưng tụ)

Nguồn điện    4 pin AA

Tuổi thọ pin   > 24 giờ (pin Alkaline)

Kích thước đồng hồ đo (Dài x Rộng x Cao, mm): 205 x 70 x 56

Trọng lượng: 200g

Cung cấp bao gồm: Máy chính,Sách HDSD, pIN AA,bao da

Details

Datasheet

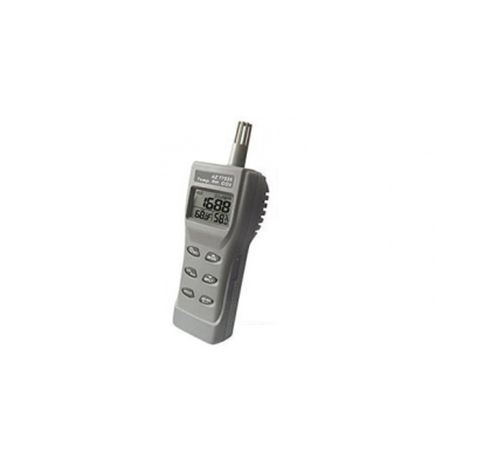

77535 AZ CO2 Meter features:

*Low cost portable meter checking indoor air quality in the office

*Triple display 3 parameters simultaneously: CO2, temperature and Relative Humidity and display Air / Dew Point / Wet Bulb Temp. by selection

*Warning carbon dioxide level

*Big LCD display with high resolution

*Design with NDIR (Non-Dispersive Infrared) waveguide technology sensor

*Manual calibration recommended



Application of 77535 AZ CO2 Checker:

The 77535 AZ portable CO2 detector could measure the indoor air quality index, including the CO2 concentration air temperature and humidity. The Carbon Dioxide value can be output to PC for on-line analysis. And it can be calibrated easily in the fresh air.



The 77535 AZ device could be used as the CO2 checker for the air quality index in all workspace, office, hospital, school, station or home. The 77535 AZ is your best choice as the air testers.



The 77535 AZ CO2 & Temperature & Relative Humidity Meter was being designed and manufactured by AZ Instrument, a well experienced manufacturer for Environmental Measuring Instrument.



Welcome to download and check the specification, CE certificate and the operation manual of 7735 AZ CO2 meter from the following website linkage.
