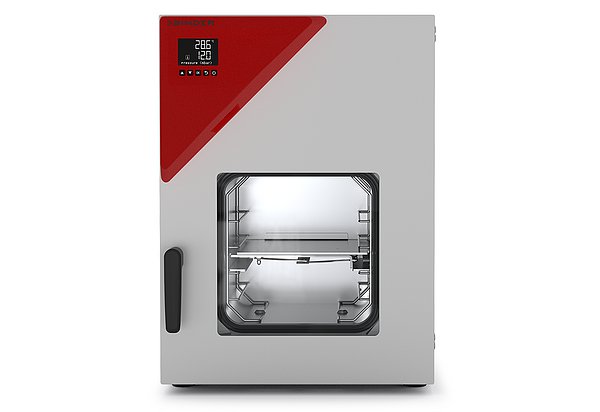

Binder VD023-230V 真空干燥箱 (10°C ~ 220°C, 0.9kW)

- Temperature range: +10°C ~ 220°C
- Temperature variation at 100 °C [± K]: 1.0
- Temperature fluctuation [± K]: 0.1
- Heating-up time to 100 °C [min]: 80
- Inert gas connection
- Shatterproof, spring-mounted safety glass panel
- Leak rate [bar/h]: 0.01
- Rated Voltage [V]: 230
- Nominal power [kW]: 0.9
- Phase (Nominal voltage): 1~
- Vacuum connection with small flange [DN mm]: 16
- Measuring access port with small flange [DN mm]: 16
- Universalanschluss für Luft / Inertgas, mit Durchflussbegrenzer (RP"): 3/8
- Interior volume [L]: 24
- Weight [kg]: 64
- Permitted load [kg]: 50
- Load per rack [kg]: 20
- Internal Dimensions (W x H x D) (mm): 285 x 285 x 295
- External Dimensions (W x H x D) (mm): 285 x 285 x 295
- Door: 1
- Number of shelves (std./max.): 1/4
- 1 aluminium racks
