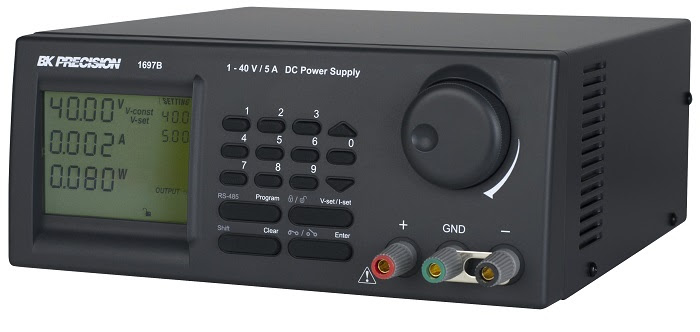

BKPRECISION 1697B Programmable DC Power Supplies (1~40 V, 0~5 A, 200 W)

Output Rating Voltage: 1 to 40 V

Current:  0 to 5A

Max Output Power: 200 W

Load Regulation

Voltage:  ≤ 200 mV

Current:  ≤15 mA

Regulation Voltag: e ≤ 10 mV

Programming/Readback Resolution

Voltage:  10 mV

Current: 1 mA

Power: 1 mW

Meter Accuracy

Voltage Meter: ± (1% + 2 counts for V > 5 V)

Current Meter: ± (1% + 2 counts for I > 0.5 A)

Ripple & Noise

Voltage: ≤ 30 mVp-p / ≤ 6 mVrms

Current: ≤ 10 mArms

General

Efficiency: ≥ 70% AC

Input: 100 to 240 VAC ±10%, 50/60 Hz

Display Meter: 4-digit voltage, current and power meter I/O Interface USB (type B), RS485

Operating Temperature 32 °F to 104 °F (0 °C to 40 °C), ≤ 80% R.H

Safety LVD: EN61010-1:2010

Electromagnetic Compatibility: EN55011, EN61000-3-2, EN61000-3-3, EN61000-6-1

Dimensions: 7.6” x 3.85” x 8.46” (193 mm x 98 mm x 215 mm)

Weight: 6.6 lbs. (3 kg)

Included Accessories:  PC software, RS485 adapter, USB cable, and test report

Optional Accessories: RS232 to RS485 adapter (ATR-2485)
