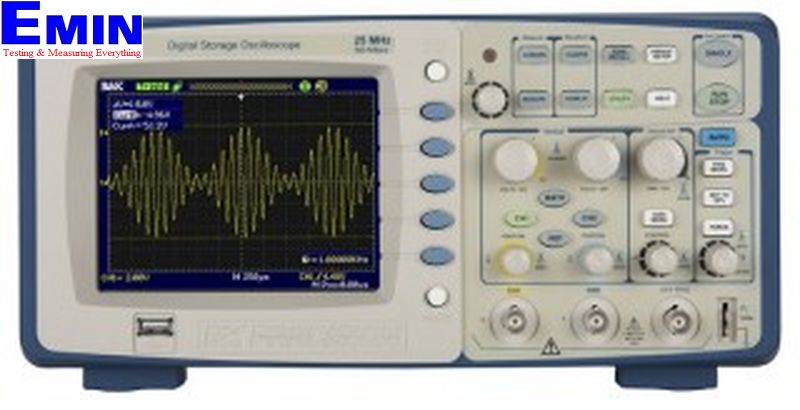

BK Precision 2530B 数字存储示波器(25Mhz,2CH,500 MSa / s)

  • 制造商: BKPRECISION
    Model: 2530B
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Manufacturer: BK Precision - USA
Model: 2530B
Bandwidth: 25 MHz
Real Time Sampling Rate: Single Channel: 500 MSa/s, Dual Channel: 250 MSa/s
Channels: 2
Record Length: Max 32,000 points
Vertical Resolution: 8 bit
Vertical Sensitivity: 2 mV/div -10 V/div(1-2-5 order)
Horizontal Scan Range: 25 ns/DIV - 50 s/DIV
Maximum Input Voltage: 400 V (DC+AC pk-pk, 1 MΩ, X10), CAT I
I/O Interface:USB, RS-232
Trigger: Edge, Pulse Width, Video*, Slope, Alternating
Math Operation: Add, Subtract, Multiply , Divide, FFT
FFT: Hanning, Hamming, Blackman, Rectangular
Measure: Amplitude, Average, Base, Burst Width, Cyclic RMS, + Duty Cycle, - Duty Cycle, Fall Time, Frequency , Max, Mean,
Min, Rise Overshoot, Fall Overshoot, Rise Preshoot, Fall Preshoot, Peak-Peak, Period, Phase, Rise Time, RMS, Top, + Width, - Width, plus 8 advanced parameters for edge to edge timing measurements
Display: 5.7 in. Color TFT, 320 x 240 resolution, 64K color
Power Requirements: 100-240 VAC
Dimensions: 305 x 160 x 133  mm
Weight: 2.3 kg
Supplied Accessories:  User Manual, 10:1 Probe Set (2 pieces), Power Cord, USB Interface Cable, EasyScope Software Installation Disk

Chi tiết

The 2530B Digital Storage Oscilloscope delivers essential features and reliable performance at a price you can afford. Analog style knobs and controls combined with a smart Auto set function make this oscilloscope easy to use. Advanced triggering, automatic measurements, and FFT functions provide you with many options to debug your circuits. Educators can appreciate the ability to disable the Auto button that would automatically setup the scope to display a signal, requiring the user to learn how to set up scope parameters manually. Additionally, the instrument comes with PC software that lets you easily capture, analyze, and document waveforms and measurement results. The 2530B is an ideal education and training tool, and also well-suited for applications in service and repair.

  • 25 MHz bandwidth, 500MSa/s sample rate
  • 5.7" color display
  • One touch automatic setup for ease of use (Auto)
  • Long waveform memory up to 32,000 point record length for each channel
  • 32 automatic measurements
  • FFT plus four additional math functions
  • Extensive trigger capabilities including pulse width and line-selectable video trigger
  • Save/recall setup and waveform data
  • Transfer waveform data, screen shots, and measurement results to a Windows PC via USB port. Analyze measurement results "off-line" or in real-time
