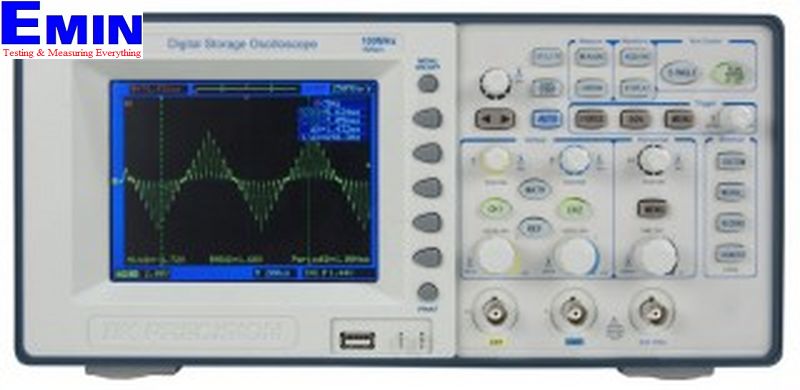

BK Precision 2542B 数字存储示波器(100MHz,2CH,1GSa / s)

  • 制造商: BKPRECISION
    Model: 2542B
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Manuafacturer:  BK PRECISION
Model : 2542B
Original: China
Warranty : 12 month


Bandwidth: 100 MHz
Real Time Sampling Rate: Single Channel: 1 GSa/s, Dual Channel: 500 MSa/s
Channels: 2
Max Memory Depth: 1.2 Mpts*
Vertical Resolution: 8 bit
Vertical Sensitivity: 2 mV/div -10 V/div (1-2-5 order)
Horizontal Scan Range: 2 ns/div to 50 s/div
Maximum Input Voltage: 400 V (DC+AC pk-pk, 1 MΩ, X10), CAT I
I/O Interface:USB, RS-232, LAN
Trigger: Edge, Pulse Width, Video*, Slope, Alternating
Math Operation: Add, Subtract, Multiply, FFT
FFT: Rectangular, Hanning, Hamming, Blackman, Flattop
Measure: Max, Min, VPP, High, Low, Amplitude, Average, RMS, Overshoot, Preshoot, Cycle average, Cycle RMS, Frequency, Period, Rise time, Fall time, +Width, -Width, +Duty, -Duty, Delay, Phase, X at MAX, X at MIN
Display: 5.7 in. Color TFT, 320 x 234 resolution, 24-bit true color
Power Requirements: 100-240 VAC
Dimensions: 320 x 156.5 x 123 m
Weight: 2.81 kg
Supplied Accessories:  User manual, two 150 MHz 10:1 passive probes (model PR37A), power cord, USB interface cable, and certificate of calibration, One BNC-to-BNC cable

Chi tiết

The 2540B, 2542B, 2540B-GEN, and 2542B-GEN dual channel 60 MHz and 100 MHz digital storage oscilloscopes (DSO) deliver performance and value, all in one portable solution. Maximize productivity using extensive features such as digital filtering, waveform recorder, pass/fail limit testing, and automatic measurements. These oscilloscopes offer powerful tools in a small affordable package with deep waveform memory up to 2.4 Mpts plus LAN and USB PC interface. The 2540B-GEN and 2542B-GEN models add a built-in arbitrary waveform generator (AWG). These digital oscilloscopes are ideal for applications in design and debugging, service and repair, and education.

  • 60 MHz (2540B/2540B-GEN) and 100 MHz (2542B/2542B-GEN)  bandwidth, 1GSa/s sample rate
  • Deep waveform memory up to 2.4 Mpts
  • 28 automatic measurements
  • FFT plus three additional math functions
  • Built-in context sensitive help system
  • For educators - ability to disable the Auto set button
  • PC software that lets you remotely control the oscilloscope and capture, save, and analyze waveform data
  • Front panel USB port for convenient storing and recalling of waveform data, setups, and screenshots on a USB flash drive
  • LAN interface enables users to capture screenshots from any standard web browser
  • Seamlessly load waveforms from the oscilloscope to WaveXpress waveform editing software and send them to arbitrary waveform generators

Arbitrary Waveform Generator Features (2540B-GEN and 2542B-GEN only)

  • 1 uHz to 20 MHz sine output (2540B-GEN), 1 uHz to 40 MHz sine output (2542B-GEN)
  • 1 uHz to 20 MHz square output,1 mHz to 10 MHz pulse output
  • 30 built-in arbitrary waveforms
  • Save up to 10 user-defined arbitrary waveforms to internal storage
  • AM, FM, FSK, PSK, and PWM modulation
  • Frequency sweep and burst mode



Model Guide
Model 2540B 2542B 2540B-GEN 2542B-GEN
Bandwidth 60 MHz 100 MHz 60 MHz 100 MHz
Built-In AWG No No Yes, 20 MHz Yes, 40 MHz
