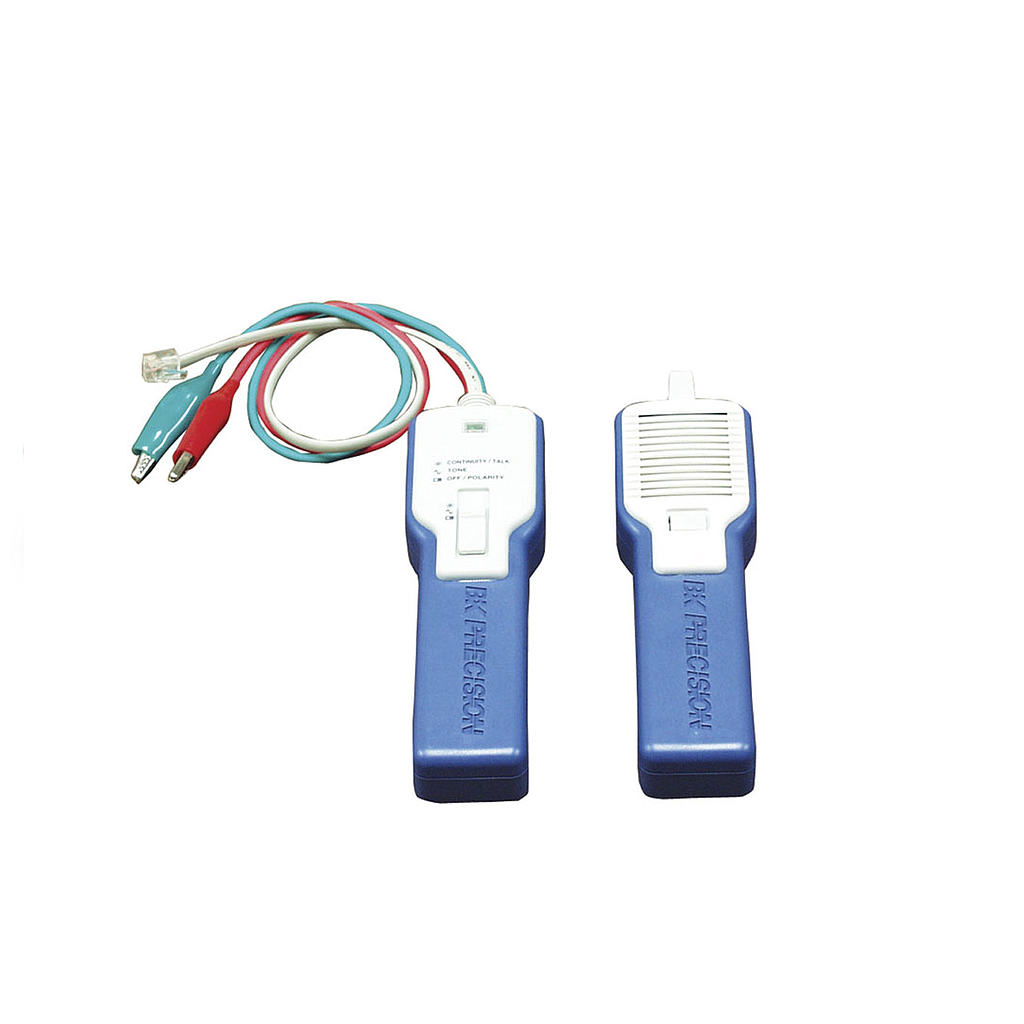

Bk Precision 262 音频发生器和电缆示踪套件

制造商: BKPRECISION
Model: 262
来源: Taiwan
保障: 12 Month
- 报价要求
联系
- 加入购物车
- 立即购买
参考校准-检定服务与维修服务

热线: (+84) 968060220
电话: +84 (24) 62923267

技术规格
制造商消息

Features:
- Cable Tracer:
+ Hi-gain, Hi-impedance amplifier
+ Capable of identifying tones up to 12 inches away
+ Rugged, moisture resistant, Mylar cone speaker
- Tone Generator:
+ Generates Warbled Tone with selectable test frequencies
+ LED indicates continuity when in CONTINUITY mode
+ LED indicates positive polarity when in POLARITY mode
+ Provides talk current on a dead line
+ Check line Polarity
- Cable Tracer Specifications:
- Dimensions: 187.1 x 47.5 x 28.4 mm
- Weight: 4.9 oz. (138.9 g)
- Power: 9-volt battery
- Tone Generator Specifications:
- Tone Output Level: 8 vp-p
- Tone Output Current:4 mA
- Tone Frequency: 1.4KHz to 1KHz or 0.84KHz to 0.7KHz with switching freq. of 14Hz or 7Hz
- Continuity / Talk Test: 35mA (leads shorted), 6.5 VDC (leads open)
- Dimensions: 177.8 x 47.5 x 28.4 mm
- Weight: 164.4 g
- Power: Standard 9-volt battery

Details

Tone Generator:

The Tone Generator is a handheld, battery powered instrument designed to perform a variety of tests on unenergized telephone lines or LAN cables. Alligator clips and a standard RJ11 plug allow the tone generator to be connected to stripped wires, terminal panels, wall plates, or modular single line jacks.

Features:

Generates Warbled Tone with selectable test frequencies
LED indicates continuity when in CONTINUITY mode
LED indicates positive polarity when in POLARITY mode
Provides talk current on a dead line
Check line Polarity

Cable Tracer:

The Line Tracer is a hand held inductive tracer that will help to identify wires without piercing the insulation. It can trace Tone Generator signals through dry wall, wood and many other non metal surfaces.

Features:
