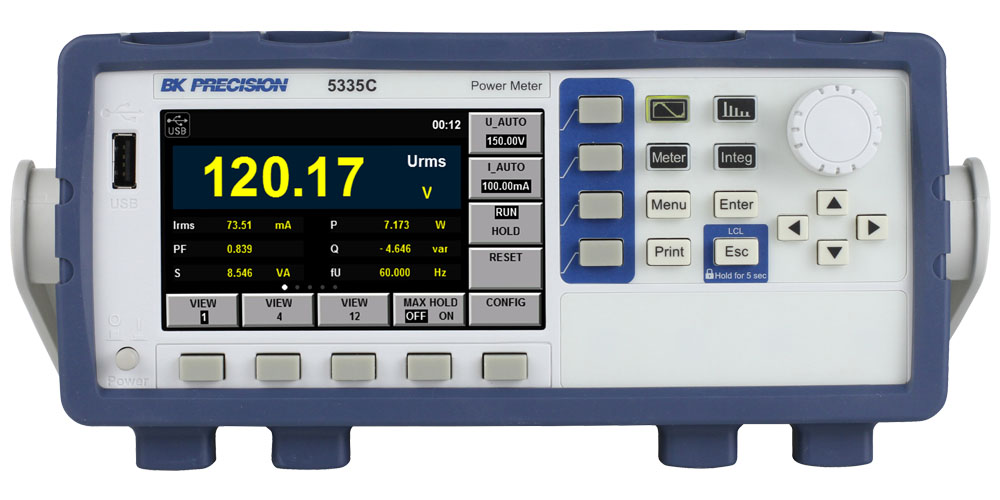

BKPRECISION 5335C 功率计 (600V, 0.5Hz~100 kHz)

Basic measurements:

      Voltage, Current: Peak to peak, Maximum, Minimum, Average_rms, Average_rectified, DC,

      Crest factor (current), Inrush (current)

      Power: Real, Apparent, Reactive, DC, Power factor

      Time: Frequency, Phase

      Integration: Total power, Total current, Maximum power, Minimum power

Harmonic measurements:

      Type: Current, Voltage, Real power, Apparent power, Reactive power, Power factor, Phase,       Percentage of total (Current, Voltage, Power)

      Range: DC up to 50th order

      Max. Frequency: 100 kHz

Input bandwidth: DC, 0.5 Hz to 100 kHz

Measurement method: Digital sampling

A/D Converter: Simultaneous conversion of voltage and current inputs, Resolution: 18-bit, Maximum conversion rate: 10 μs

Line filter: Select OFF or ON (cutoff frequency at 500 Hz)

Peak (max,min): Voltage, current, or power

Input voltage continuous: max. 1.5 kV-peak or 1 kV-RMS, whichever is less

Input voltage transient (<1s): max. 2 kV-peak or 1.5 kV-RMS, whichever is less

Input voltage common-mode: max. 600 Vrms

Voltage input impedance: 2 MΩ + 13 pF in parallel (typical)

Current input impedance (typical):

      5 mA to 200 mA range: 505 mΩ + 0.1 μH

      0.5 A to 20 A range: 5 mΩ + 0.1 μH

      Sensor input: 20 kΩ (50 mV to 2 V)/100 kΩ (2.5 V to 10 V)

Input current continuous max.:

       5 mA to 200 mA range: 30 A-peak or 20 A-RMS, whichever is less

      0.5 A to 20 A range: 100 A-peak or 30 A-RMS, whichever is less

      Sensor input: Peak value less than or equal to 5 times the rated range

Input current transient (<1s) max.:

      5 mA to 200 mA range: 30 A-peak or 20 A-RMS, whichever is less

      0.5 A to 20 A range: 150 A-peak or 40 A-RMS, whichever is less

      Sensor input: Peak value less than or equal to 10 times the rated range

Voltage measurement ranges:

      CF=3: 15 V, 30 V, 60 V, 150 V, 300 V, 600 V

      CF=6: 7.5 V, 15 V, 30 V, 75 V, 150 V, 300 V

Display: 4.3” TFT-LCD display, 480 x 272

Remote Interfaces: USB (USBTMC-Compliant), RS232, LAN

Power: 100 to 240 VAC, 50 / 60 Hz

Power Consumption: 50 VA max.

Dimensions (W x H x D): 8.4” x 3.5” x 14” (214.5 mm × 88.2 mm × 354.6 mm)

Weight: 6.2 lbs (2.8 kg)

Standard Accessories: Getting started manual, instruction manual (downloadable), AC power cord, USB type: A-to-type B cable, certificate of calibration
