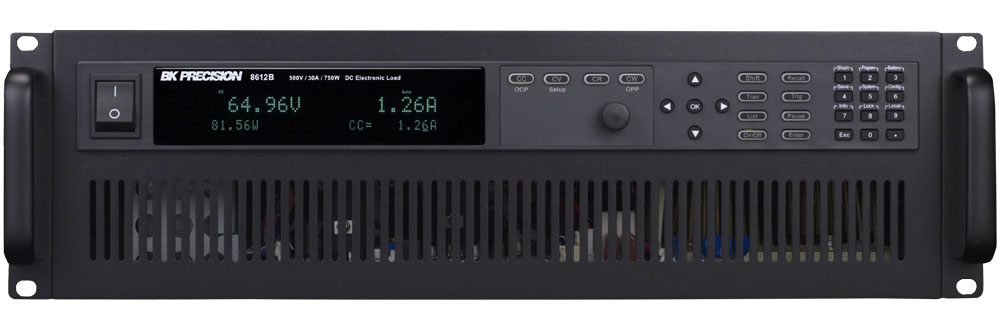

BKPRECISION 8612B 可编程直流负载 (0~500V, 3~30A, 750W)

Without GPIB

Input voltage: 0 – 500 V

Input current: 0~3A; 0~30A

Input power: 750W

Mode: CV mode, CC mode, CR mode, CW mode

Readback Voltage: 0~18; 0~120V

Readback Current: 0~3A; 0~30A

Readback Power: 750W

General (typical):

Input terminal impedance: 1 MΩ

AC input: 110 V/220 V ±10%, 50/60 Hz

Operating temperature: 32 ºF to 104 ºF (0 °C to 40 °C)

Storage temperature: 14 ºF to 140 ºF (-10 °C to 60 °C)

Humidity: Indoor use, ≤ 95%

Safety: EN61010-1:2001, EU Low Voltage Directive 2006/95/EC

Dimensions (W x H x D): 17.3” x 5.3” x 22.5” (439 x 133.3 x 580 mm)

Weight: 54 lbs (24.6 kg)

Standard accessories: User manual, power cord, certificate of calibration

Optional accessories: TLPWR1 high current test leads
