BKPRECISION 890C BK Precision 890C 手持式电容表LCR测试仪（最大50mF）

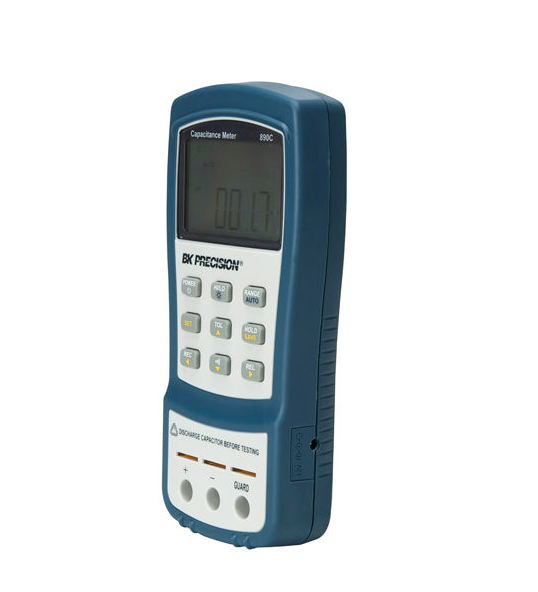

The 830C and 890C are 11,000-count handheld capacitance meters that measure capacitance up to 200 mF (50 mF for 890C). Straightforward to operate, these meters make measurements quickly and simplify the capacitance sorting process.Unlike other handheld instruments such as LCR meters that make measurements using an AC signal with a specific test frequency, they measures capacitance by applying a constant current that briefly charges, then discharges the connected capacitor.These meters include many handy functions. The compare mode which supports 25 sets of High/Low limits, provides a convenient means to sort capacitors without needing to set up the meter each time. Data logging, Hold/Min/Max Average recording, tolerance, and relative mode features offer additional component troubleshooting tools.

• 0.5% basic accuracy
• Measure capacitance up to 200 mF (50 mF for 890C)
• Bright LCD backlight
• Fast auto range design for rapid, easy component measurements
• USB (Virtual COM) interface
• SCPI compliant commands for remote communication
• Software for data logging and front panel emulation available as free download

Applications:

• Capacitive component troubleshooting
• Electronic assembly
• Component sorting
• Quality control

Ordering Information: Base model 830C includes a 120 V AC adapter as a standard accessory. Alternatively, a 230 V AC adapter can be supplied by requesting model 830C EXD at time of order. AC adapters are optional accessories for the 890C.

• Datasheet (PDF)
• Manual (PDF)
