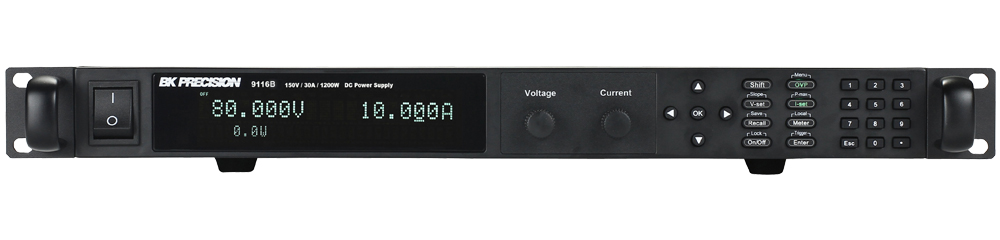

BKPRECISION 9116B 多量程可编程直流电源 (0~80V, 0~60A, 1200W)

Without GPIB

Output Rating:

Voltage: 0~150 V (Ch1 & Ch2), 0-5 V (Ch3)

Current: 0~30 A (Ch1, Ch2), 0-3 A (Ch3)

Power: 1200 W

Load Regulation: 0.05 % + 30 mV; 0.1 % + 30 mA

Line Regulation: 0.02 % + 20 mV; 0.02 % + 10 mA

Ripple (20 Hz - 20 MHz): ≤ 60 mVpp; 40 mArms

Programming  Resolution: 3 mV; 1 mA

Readback Resolution: 3 mV; 1 mA

General:

Efficiency: 75% (120 VAC) / 80% (220 VAC)

Power Factor (full load): 0.99

Standard Interface: USB, GPIB (optional), RS232, RS485

AC Input: 115/230 VAC ± 10 %, 47 Hz to 63 Hz

Input Current (nominal): 13.3 A (120 VAC); 6.9 A (220 VAC)

Operating Temperature: 32 ºF to 104 ºF (0 ºC to 40 ºC)

Storage Temperature: -4 ºF to 158 ºF (-20 ºC to 70 ºC)

Safety: EN61010-1:2001, EU Low Voltage Directive 2006/95/EC

Dimensions (W x H x D): 16.32” x 1.75” x 19.02” (414.5 x 44.5 x 483.2 mm)

Included Accessories: User manual, AC power cord (9115/B, 9115/B-AT, and 9116/B only), unterminated AC power cord with input connector (9117 only), rackmount kit, certificate of calibration
