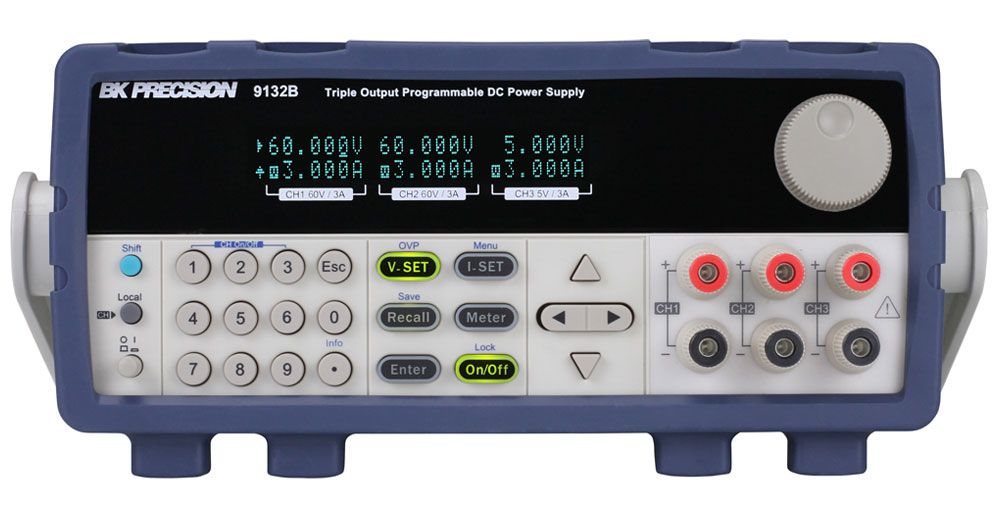

BK Presicion 9132B 三路输出可编程直流电源(0-60V,0-3A,375W)

Output voltage: 0-60V (CH1 & CH2), 0-5V (CH3)

Output current: 0-3A (CH1 & CH2), 0-3A (CH3)

Capacity: 375W

Load regulation: ≤ 0.01% + 3 mV, ≤ 0.1% + 3 mA

Line Regulation: ≤ 0.01% + 3 mV, ≤ 0.1% + 3 mA

Noise, ripple: ≤ 1mVrms, ≤ 4 mArms

Programmable resolution: 1mV / 1mA

Programmable accuracy: ≤ 0.03% + 10 mV, ≤ 0.1% + 5 mA

Memory: 4 groups with 99 locations

Timer: 0.1 ~ 99999.9 seconds

Interface: USB, GPIB, RS232

Power supply: 110 / 220VAC

Accessories: power adapter, Manual, test report, standard certification

Detail

Datasheet


Manual
