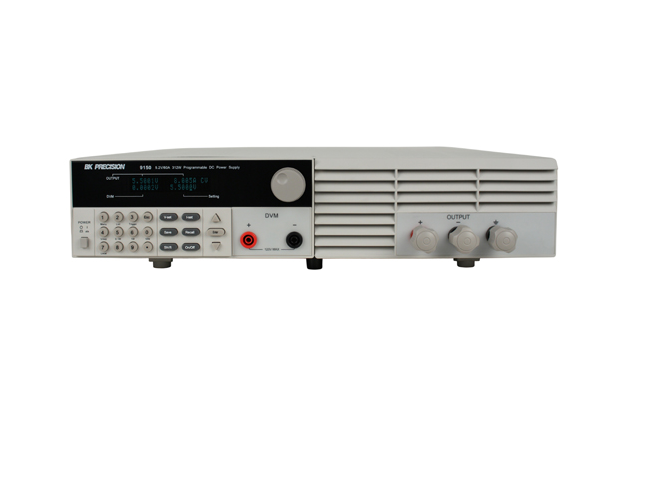

BK Precision 9152 线性可编程直流电源（0-30V / 18A）
制造商: BKPRECISION Model: 9152 来源: China 保障: 12 Month - 报价要求
- 报价要求
- 联系
Manuafacturer: BK PRECISION
Model : 9152
Original: China
Warranty : 12 month
Output Voltage: 0 - 30 V
Output Current: 0 - 18 A
Resolution: 1 mV, 1 mA
Programming accuracy: <0.02%+6 mV, <0.1%+15 mA
Readback/ Meter accuracy: <0.02%+3 mV, <0.05%+10 mA
Ripple & Noise: ≤ 4 mVp-p, 5 mArms
DVM meter: 0~40V
Communicate via RS232 or USB Interface, using included RS232 to TTL or USB to TTL serial converter cable
Input: 110/220VAC
Weight: 63.9 lbs, (29 kg)
Dimensions: 429 mm × 88.2 mm × 458.9 mm
Included Accessories: User manual, power cord, RS232 and USB communication cable, application software installation disk, and certificate of calibration.
The 9150 series are high performance linear-regulated programmable DC power supplies that provides excellent performance and features not found in other supplies in this price category. These supplies are designed for applications in design verification, production or university labs that require high yet clean and reliable power, combined with excellent resolution, accuracy and fast transient response time.
- Very low ripple and noise due to linear regulation
- Excellent display resolution
- Fast transient response time (<120 s="" li="">
- SCPI compatible
- Communicate via RS232 or USB Interface, using included RS232 to TTL or USB to TTL serial converter cable
- Closed case calibration
- List mode operation for increased throughput
- Very quiet due to intelligent fan speed control
- For bench use or rack mountable
- Application Software for front panel emulation and simple test sequence generation included
- Digital port with Remote Inhibit (RI) useful for turning multiple power supplies On/Off simultaneously
- Over voltage protection
- Digital Volt Meter and Milliohm Meter
| Model Guide | ||||
|---|---|---|---|---|
| Model | 9150 | 9151 | 9152 | 9153 |
| Output Voltage | 0-5.2 V | 0-20 V | 0-30 V | 0-60 V |
| Output Current | 0-60 A | 0-27 A | 0-18 A | 0-9 A |
