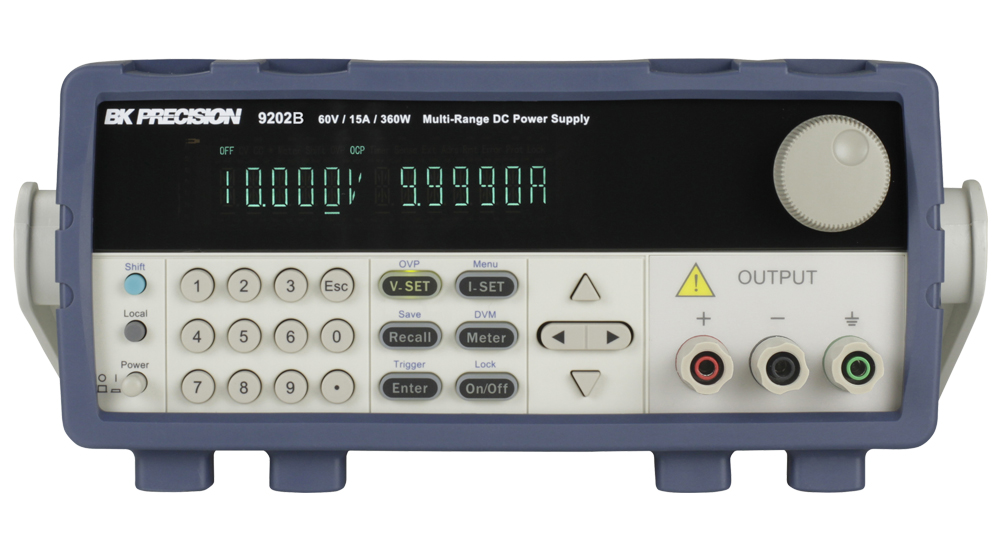

BKPRECISION 9202B 多量程可编程直流电源 (0~60V, 0~15A, 360W)

Output Rating:

      Voltage: 0 to 60 V

      Current: 0 to 15 A

      Power: 360 W

Line Regulation:

      Voltage: ≤ 0.01% + 8 mV

      Current: ≤ 0.05% + 6 mA

Load Regulation:

      Voltage: ≤ 0.01% + 8 mV

      Current: ≤ 0.1% + 6 mA

Ripple and Noise (20 Hz - 20 MHz):

      Voltage: ≤ 15 mVpp

      Current: ≤ 8 mArms

Programming Resolution:

      Voltage: 1 mV

      Current: 0.1 mA

Readback Resolution:

      Voltage: 1 mV

      Current: 0.1 mA (< 10 A); 1 mA (> 10 A)

Programming Accuracy ± (% output + offset):

      Voltage: ≤ 0.03% + 5 mV

      Current: ≤ 0.1% + 15 mA

Readback Accuracy: ± (% output + offset)

      Voltage: ≤ 0.03% + 5 mV

      Current: ≤ 0.1% + 15 mA

General:

Remote Sense Compensation: 1 V

DVM Range: 0 to 60 V

DVM Accuracy: 0.02%+10 mV

DVM Resolution: 1 mV

Standard Interface: USB (USBTMC-compliant) and RS232

AC Input: 110/220 VAC (+/- 10 %), 47 Hz - 63 Hz

Operating Temperature: 32°F to 104°F (0°C to 40°C)

Storage Temperature: -4°F to 158°F (-20°C to 70°C)

Dimensions (W×H×D): 8.45x3.47 x13.96” (214.5x88.2x354.6 mm) 8.45x3.47x17.52” (214.5x88.2x445 mm)

Standard Accessories: User manual, power cord, & certificate of calibration

Optional Accessories: IT-E151 rack mount kit
