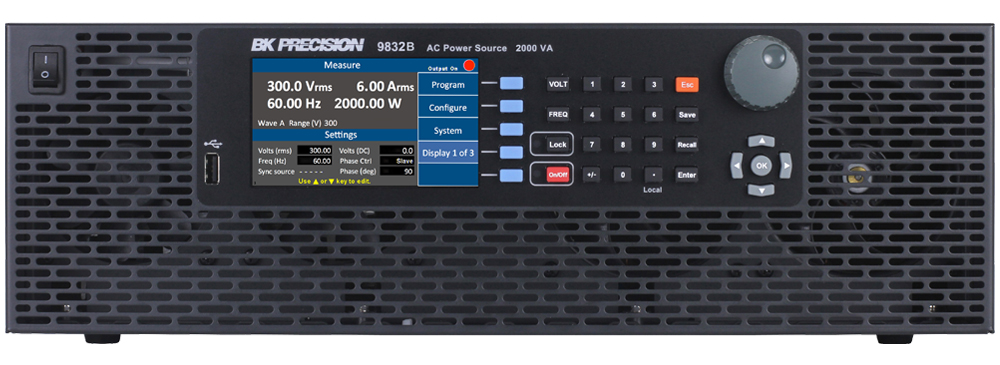

BKPRECISION 9832B 可编程交流电源 (2000VA , 300V, 20A)

Max. Power: 2000 VA

Max. Voltage: AC (rms) 150 V / 300 V

                     DC ± 212 V / ± 424 V

Max. Current (rms): 0 - 150 V: 20 A

                               0 - 300 V: 10 A

Frequency Range: Single phase: 45 Hz~1200 Hz

                            3-Phase: 45 Hz~600 Hz

Total Harmonic Distortion (THD): ≤ 0.5 % tại  45 Hz~400 Hz (resistive load)

Remote Interface: LAN, USB, GPIB, and RS232

Programming Resolution:

Voltage: 0.1 V

Phase: 0.1 º

Frequency: 0.01 Hz (< 100 Hz), 0.1 Hz (> 100 Hz)

Measurement Resolution:

Voltage: 0.1 V

Current: 0.01 A

Power: 0.01 W

Frequency: 0.01 Hz (< 100 Hz); 0.1 Hz (> 100 Hz)

AC Input:

Voltage: 190 V~250 V

Frequency: 47 Hz~63 Hz

Maximum Power: 3800 VA

Maximum Current: 20 A

Power Factor: 0.98 (typical)

General:

Analog BNC Input:

     Input Voltage Range: 0~± 10 V

     Input Impedance: 200 kΩ

     Bandwidth: 1.2 kHz

Protection: OVP, OCP, OPP, OTP

Operating Temperature: 32~104°F (0~40°C)

Storage Temperature: -40~185°F (-40~85°C)

Environmental Conditions: ≤ 80% Relative Humidity up to 35 ºC, non-condensing

Dimensions (W x H x D): 16.5” x 5.2” x 22” (420 x 132 x 560 mm)

Weight: 52.9 lbs (24 kg)

Included Accessories: AC power cord with input connector, test report & certificate of calibration

Optional Accessories Rackmount ears with handles (RK3U) & 3-Phase sync adapter (TL983P), 3-Phase kit (TL983P-KIT)
