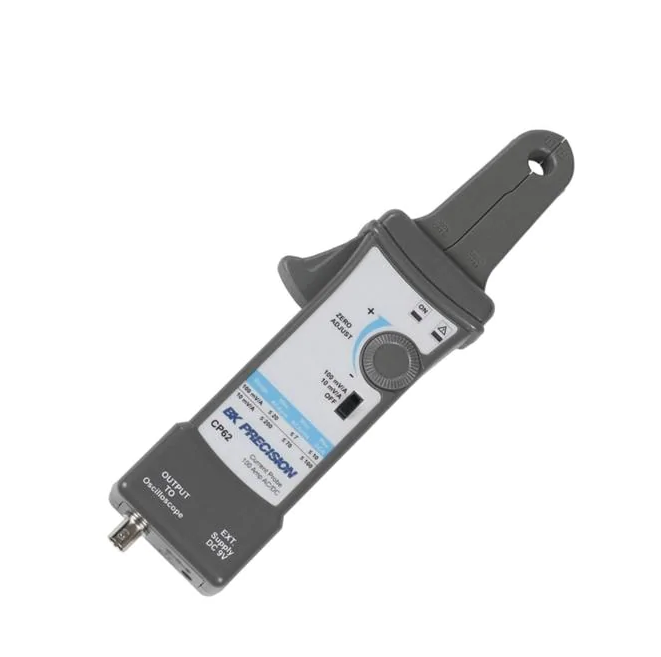

BKPRECISION CP62 300 kHz AC/DC 示波器电流钳子 (10/100 mV/A)

Current Ranges: 10/100 mV/A

DC Accuracy, typical:

±3% ±50 mA at 100 mV/A (50 mA to 10 A peak range)

±4% ±50 mA at 10 mV/A (500 mA to 40 A peak range)

±15% max at 100 mV/A (40 A peak to 100 A peak range)

Dimensions: 280 mm x 70mm x 32 mm (11 x 2.8 x 1.3 inch)

Maximum Conductor Size: 11 mm (0.43 inch)

Cable Length: 100 cm ( 3.3 feet)

Weight: 260 g (9.5 oz) (without battery)

Temperature:

 Working: 0°C to +50°C (+32°F to +122°F)

 Storage: -20°C to +80°C (-4°F to +176°F)

Humidity:

0°C to 40°C, 95% humidity

40°C to 50°C, 45% humidity

Battery: 9V NEDA 1604A, IEC 6LR61

AC Adapter:  Linear AC adapter with 9VDC, 300mA, and center negative output
