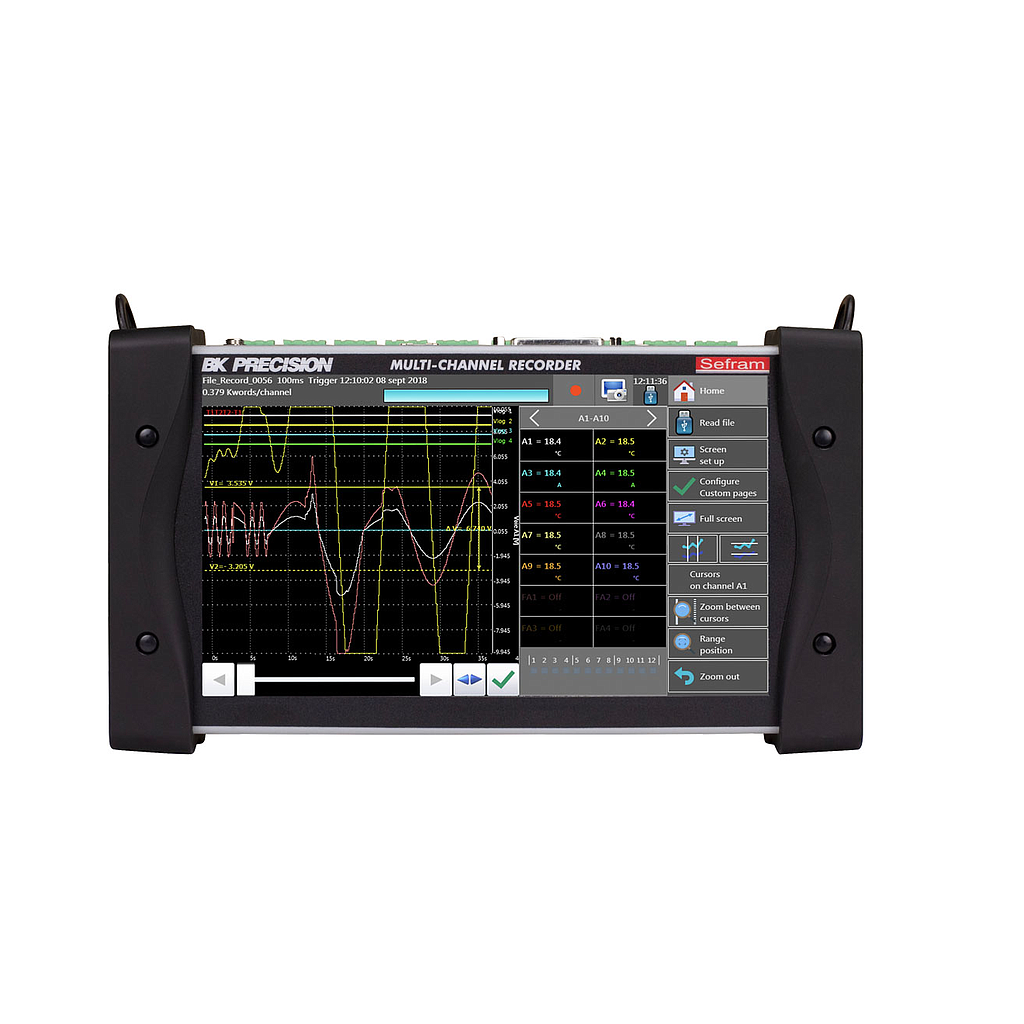

BKPRECISION DAS220-BAT Portable 10-channel data recorder

- Analog Channels

Analog Input Channels: 10 integrated channels

DC Voltage

Ranges:

 ± (0.5, 1, 2.5, 5, 10, 25, 50, 100) mV

± (0.5, 1, 2.5, 5, 10, 25, 50, 100) V

Maximum input Voltage 100 V DC

Accuracy 0.1% of the full scale ±10 µV

- Temperature with Thermocouples

Sensors Range by Type (Cold junction compensation: ±0.5 °C)

-210 °C to 1200 °C

K  -250 °C to 1370 °C

T  -200 °C to 400 °C

-50 °C to 1760 °C

200 °C to 1820 °C

-250 °C to 1000 °C

-250 °C to 1300 °C

0 °C to 2320 °C

-200 °C to 900 °C

- Temperature with Pt100 and Pt1000

Current: 1 mA (Pt100), 100 µA (Pt1000)

Range: -200 °C to 850 °C

Measurements: 2 and 3 wires

Accuracy: (at 20 °C) 0.3 °C ±0.1% of reading

Compensated Resistance

2 wires: 30 Ω max.

3 wires : 50 Ω max.

- Resistance

Ranges: 1 kΩ and 10 kΩ

Accuracy 1 Ω (range 1 kΩ) and 10 Ω (range 10 kΩ)

- Logic Channels

Logic Input/Output

Number of Channels: 12

Maximum Permitted Voltage: 24 V Cat I

Input Impedance: 4.7 kΩ

Sampling Rate: 1 ms max.

Timing Input

Number of Channels: 4 (K1 to K4)

Maximum Permitted Voltage: 24 V Cat I

Input impedance: 4.7 kΩ

Sampling Rate: 1 ms max.

Pulse Counter: 0 to 10 Million, accuracy 0.1%

Frequency Measurement :1 Hz to 10 kHz, accuracy 0.1%

PWM Measurement :100 Hz to 2 kHz, accuracy 0.1%

Alarm Output

Number of Channels: 4 Alarms (A, B, C, D)

Output Level: 0 to 5 V


General

Internal Flash Drive Size:  32 GB

Maximum File Size:  2 GB

Operating Temperature:  0 °C to 40 °C, 80% RH (no condensation)

Storage Temperature : -20 °C to 60 °C

Display:  10” TFT touchscreen LCD, backlit, 1024 x 600 dots

Power Supply:  15 V / 4 A max with main adapter (100 / 240 VAC)

Interfaces:  2 x USB host, LAN (10/100 base-T with RJ45 socket)

Battery:  Non removable, Lithium-ion

Typical Battery Life:  15 hours with standby mode, 10 hours without stand-by mode

Safety:  Cat I 100 V, according to IEC61010-1

Weight:  3.3 lbs (1.5 kg)

Dimensions:  (W x H x D) 2.6” x 11.7” x 6.9” (66 x 298 x 176 mm)

Supplied Accessories

Main adapter 100 / 240 V, 25 pin male connector(1) and backshell, 10 input connectors, shoulder strap, stylus, soft wipe, and screwdriver
