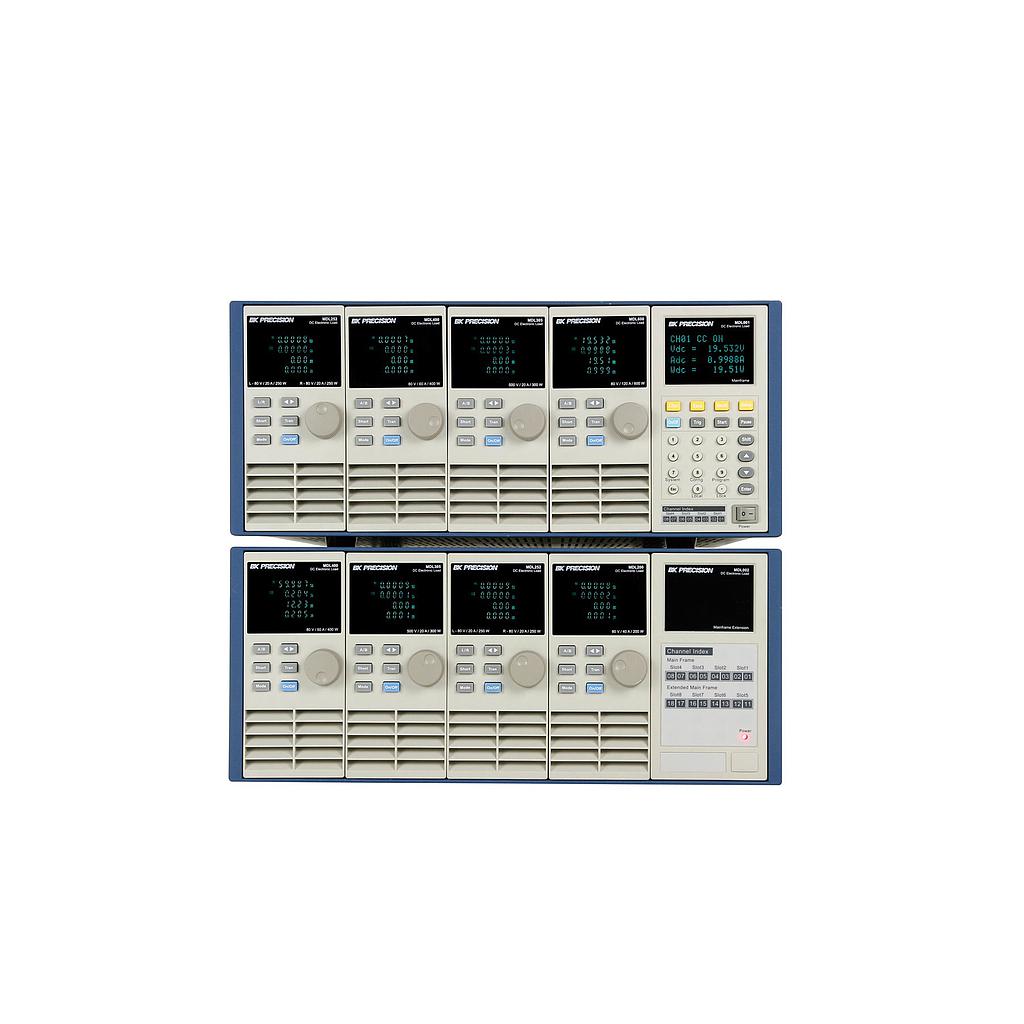

BKPRECISION MDL252 模块式可编程直流电子负载 (0-80V, 0-20A, 250W/50W)

Input Voltage: 0-80 V

Input Current: Low: 0-3A; High: 0-20 A

Input Power: 250 W/50 W

Channel: 2

Minimum operating voltage: Low: 0.10 V at 4 A; high: 1 V at 40 A

Mode Regulation: CV, CC, CR, CW

Measurement: A, V, W

Over-Current/Over-Voltage/Over-Power/Over Temperature Protection

General (typical)

Short Circuit:

Current (CC): Low: 3A; High: 30A

Voltage (CV): 0 V

Resistance (CR): 50 mΩ

Input Terminal Impedance: 300 kΩ

Safety: EN61010-1:2001, EU Low Voltage Directive 2006/95/EC

Dimensions: 3.2” x 7.2” x 22.6” (82 x 183 x 573 mm)

Weight: 11 lbs (5 kg)
