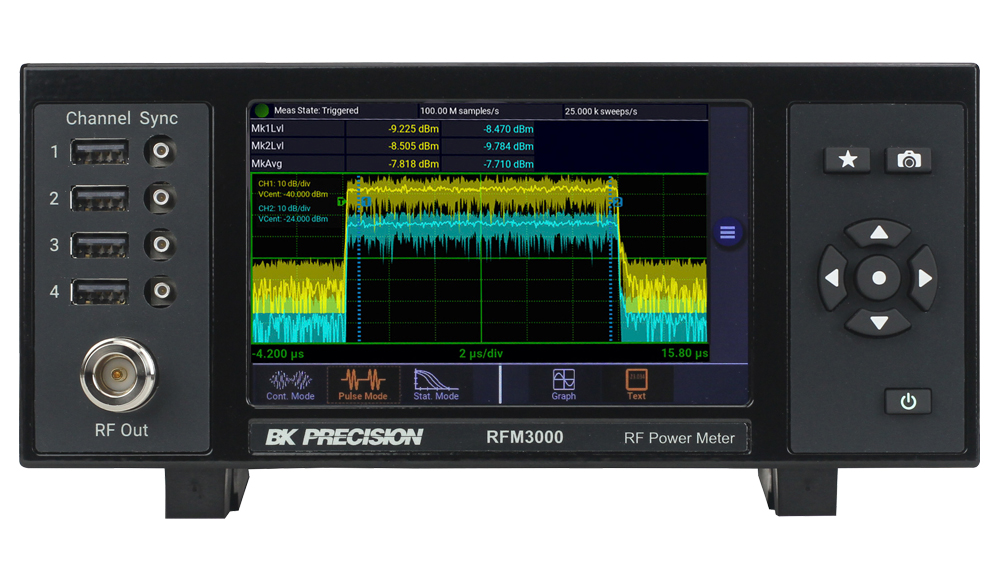

BKPRECISION RFM3004-GPIB 功率计 (0~10V, ±200mV, 4 channels)

Channel: 4 Channels with GPIB

- Inputs/Outputs (front panel):

      USB with SMB: trigger port 4 ports USB2.0: Type A receptacle, 4 ports SMB(f)

      Test Source (optional rear panel placement): 50 MHz: 1.00 mW (0 dBm) ± 2.3% (0.1 dB) typical

- Inputs/Outputs (rear panel):

      LAN 10/100 Ethernet: RJ-45 modular socket

      USB with SMB trigger port: 4 ports USB2.0: Type A receptacle, 4 ports SMB(f)

      Multi I/O Connector:

           User Selectable Status, trigger, or voltage output

           Range: 0 to 10 V (Analog unipolar) / -10 V to +10 V (Analog bipolar) / 0 or 5 V (Logic)

           Accuracy: ±200 mV (±100 mV typical)

           Linearity: 0.4% typical

- Remote Control:

      Command Set SCPI-1999.0

      LAN Ethernet: 10/100/1000 BaseT; HiSLIP

      GPIB Optional

- General:

Power Requirements: 90 to 260 VAC, 47 to 60 Hz; 90 to 135 VAC, 47 to 400 Hz; 30 W (35 VA) max

Operating Temperature: 0 to 50 °C (32 to 122 °F)

Storage Temperature: -40 to +70 °C (-40 to 158 °F)

Humidity: 95% maximum, non-condensing

Altitude Operation: up to 15,000 feet (4600 m)

Shock Withstands: ± 30 G, 11 ms impulse in X, Y, and Z axes

Vibration Withstands: 2 G sine, 5 to 55 Hz; 2 G random, 5 to 500 Hz

Dimensions (excluding connectors): (H x W x D) 3.5" x 8.3" x 11.2" (89 x 211 x 284 mm)

Weight: 4.8 lbs (2.2 kg)

Included Accessories: Power cord
