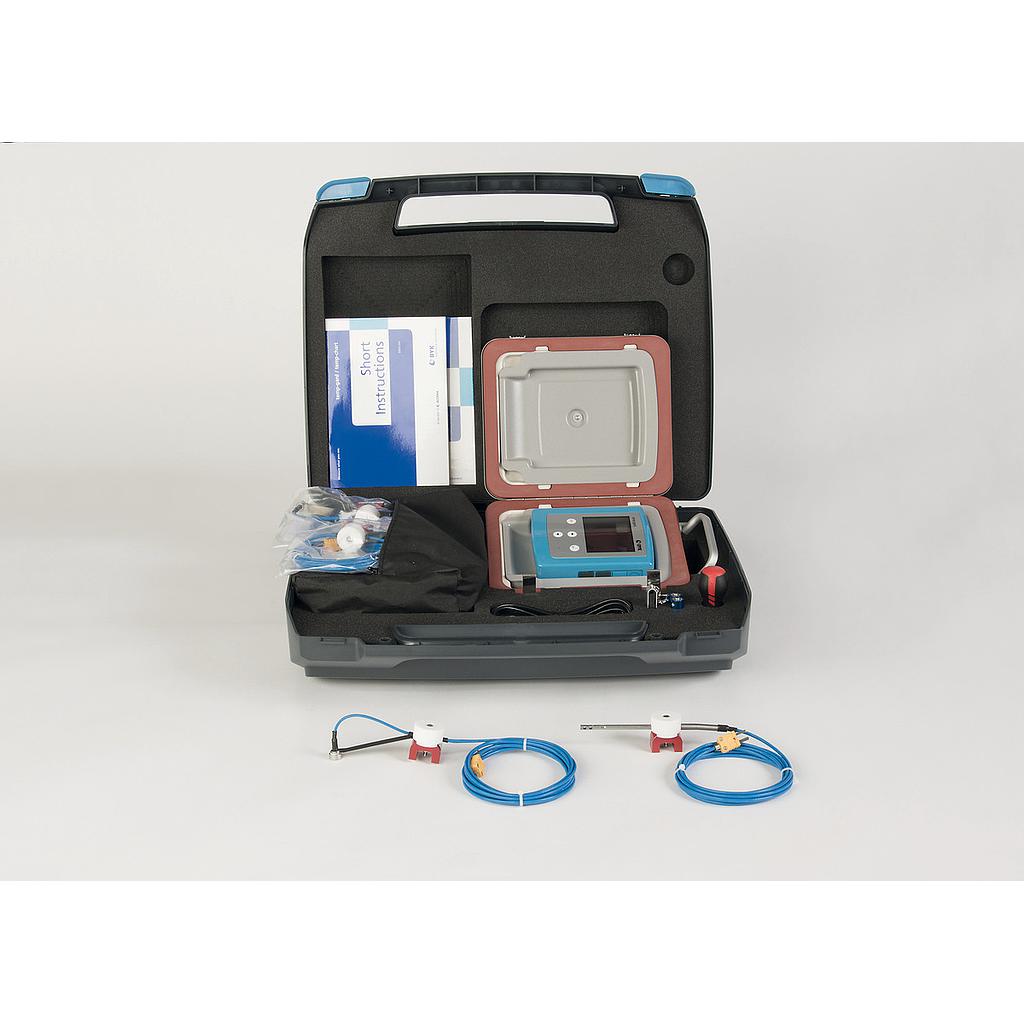

BYK temp-gard pro 6p Temperature data logger for QC and Analysis (Oven recorder - 6 magnetic probes for QC & Optimization)

Technical Specifications

Probe Type:magnetic

Temperature Range: 0 - 400 °C

Temperature Range: 32 - 752 °F

Accuracy: ± 0.5 °C

Probes: 6 clamp probes = one air probe, 5 object probes

Resolution: 0.1 °C (0.18 °F) from 0 - 400°C (32 - 752 °F)

No. of Channels: 6

Sampling Interval: 0.1 sec up to 5 min

Thermal Barrier Dimensions: 25.5 x 21.5 x 13.5 cm (10.0 x 8.5 x 5.3 in)

Maximum Duration: at 100 °C, 8.5 hrs; at 200 °C, 2.5 hrs; at 250 °C, 2.0 hrs


General

Memory: 240,000 readings

Interface: USB 2.0

Display: Color, 7.9 x 6 cm (3.1 x 2.4 in)

Battery Capacity: 0.5 sec interval = 25 hrs (AA Alkaline)

Weight: 3.6 kg/ 7.8 lb

Details

Features

Small Logger, Big Display

  • Small, modern data logger

  • Large color screen for mea­su­rement setup direct on logger

  • 6 or 12 high-quality type "K" probes can be connected

  • Detection of connected probes

  • Temperature profile on display

  • USB interface provides easy data transfer for on-site evaluation

  • Long battery life with 2 AA Alkaline batteries

  • Certified high accuracy for long-term reliable results
