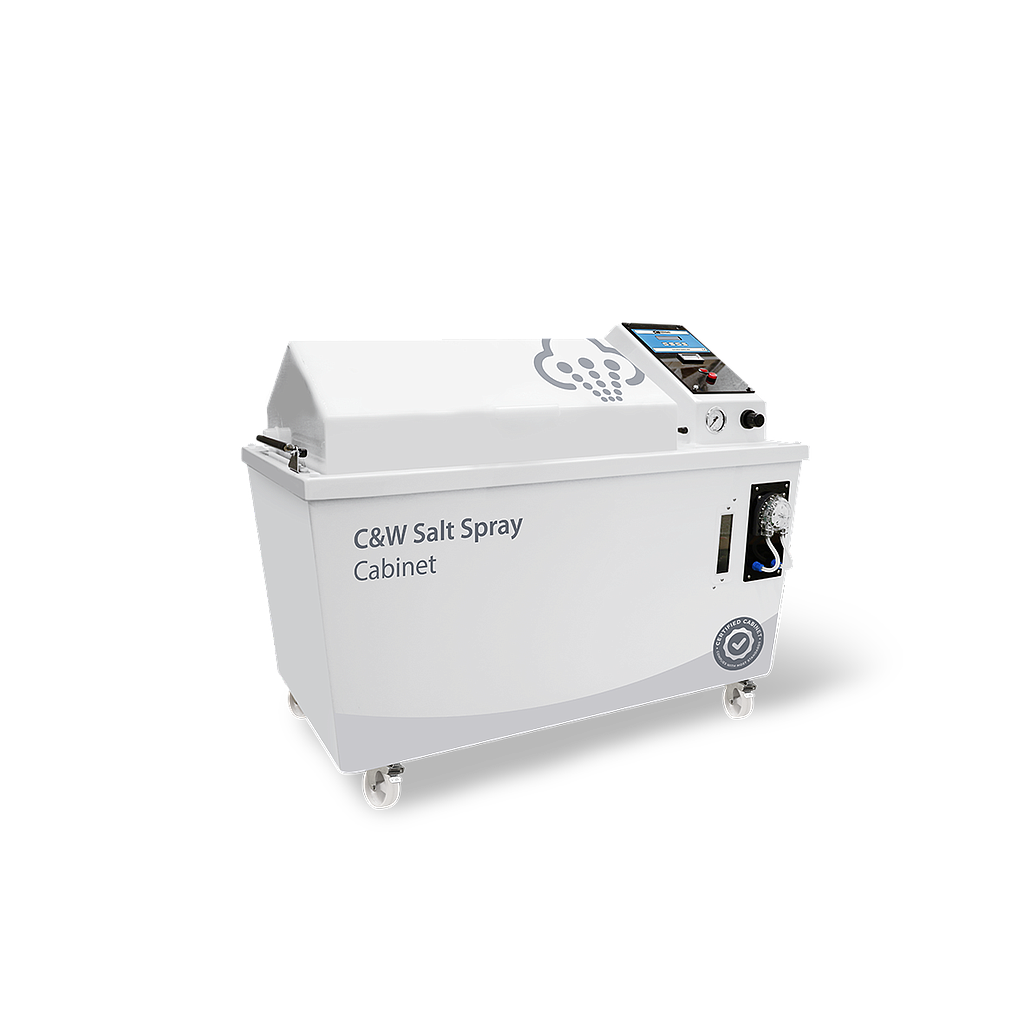

C&W CW1002 盐雾试验箱 (200L, 自动)

External dimension

L: 1000 mm

W: 830 mm

H: 1040 mm

Internal dimension

I: 610 mm

W: 510 mm

H1: 455 mm

H2: 625 mm

Panel capacity: 80

Power Supply Amp: 13

Style: Floormounted

Compressed air:

Type: Clean, dry, oil free

Presure: 2 ~ 4 bar (30 ~ 60 psi)

Flow: 3.5 cfm at 15 psi

Connection: 10mm ID plastic pipe

Power supply: 230V, 50/60Hz Single-phase, other voltage on request.

Water type: De-ionzed or mains water below 50 mg/litre TDS

Water pressure: 2 - 4 bar (30 to 60 psi)

Water connection: 10mm ID plastic pipe

Drain: 36 mm outside diameter plastic pipe liquid waste

Reservoir with Lid: Supplied on castor with internal solution filter

500mm x 620 mmm x 540 mmm (LxWxH)


Scope of supply

1 x CW4088 Installation kit

1 x CW4052 Annual kit

1 x CW4035 Set of Collection Vessel (2 funnel, 2 cylinder)

1 x 5kg Salt + Certificate

1 x CW5882 Adapter for pipe

1 x VF7101 Corrosion Handbook

Details

Datasheet


Manual
