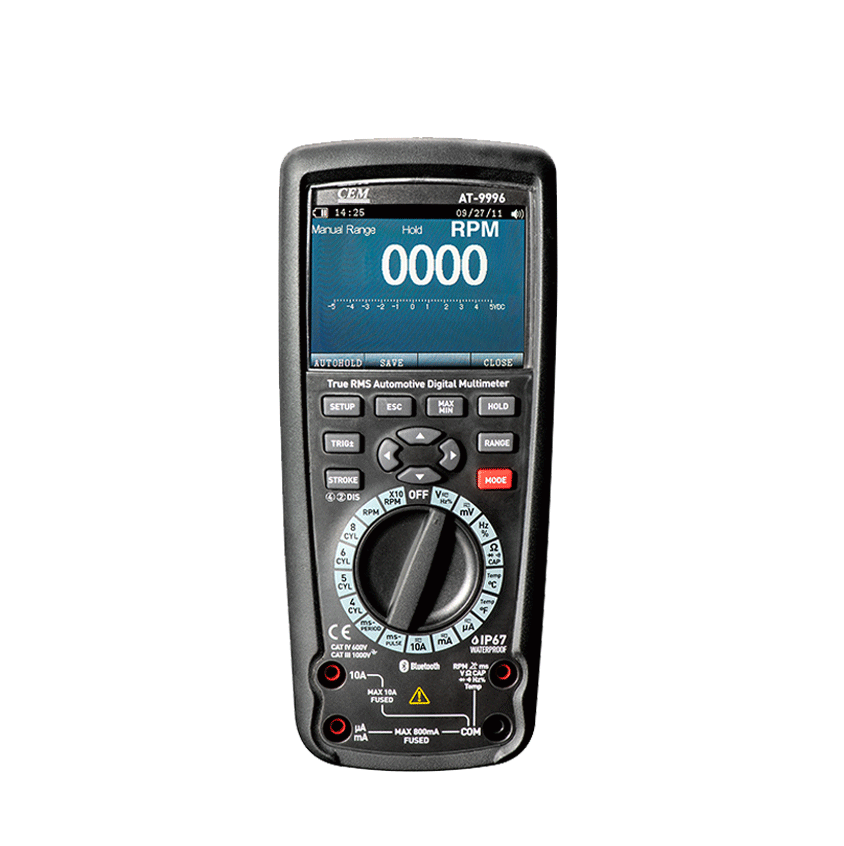

CEM AT-9996 自动示波万用表 (AC/DC 1000V, 10A)

Oscilloscope Functions

Display Size: 3.5" color LCD; 320 x 240 pixels

Bandwidth: 10MHz

Real time sample rate: 50MS/s

Risetime: 17.5ns

Glitch Capture: 50ns

Vertical Sensitivity: 20mV to 100V/div

Vertical Resolution: 8 bits

Trigger Mode: Ferr Run, Single Shot, Edge

Trigger Source: CH1

Trigger Coupling: AC/DC

Input impedance: 1MΩ/20pF

Max Input Volatge: 400V(peak)

Cursor Measurement: Voltage and time

Automotive True RMS Multimeter Functions

Voltage DC Maximum/Resolution/Accuracy: 1000V/1μV/±(0.025% + 5)

Voltage AC Maximum/Resolution/Accuracy: 1000V/1μV/±(0.4% + 40)

Current DC Maximum/Resolution/Accuracy: 10A/0.01μA/±(0.15% + 2)

Current AC Maximum/Resolution/Accuracy: 10A/0.01μA/±(0.07% + 5)

Resistance Maximum/Resolution/Accuracy: 50MΩ/0.1Ω/±(0.05% + 2)

Capacitance Maximum/Resolution/Accuracy: 10mF/0.001nS/±(1.0% + 5)

Frequency Maximum/Resolution/Accuracy: 10MHz/0.01Hz/±(0.005% + 1)

RPM(Tach)Maximum/Accuracy: 600 ~ 4000RPM;600 ~ 12000RPM/±(2.5%+2d)

Dwell Angle Maximum/Accuracy: 1CYL, 2CYL, 3CYL, 4CYL, 5CYL, 6CYL, 8CYL, 10CYL, 12CYL/±(2.5%+2d)

Duty Cycle Maximum/Accuracy: 0.1~99.9%/±(1.5%+2d)

Period Maximum/Accuracy: 0.1~20mS/±(3.0%+5d)

Pulse Width Maximum/Accuracy: 0.1~10mS/±(3.0%+5d)

Diode and Continuity: Yes

PC Interface: Bluetooth

Power Supply: 6 hours Li-ion rechargeable battery;AC Adaptor/charger

Size(HxWxD): 220mm x 96mm x 60mm

Weight: 631g


Test leads, Li-ion batteries, Type K temperature probe, Software, gift box with carrying case.
