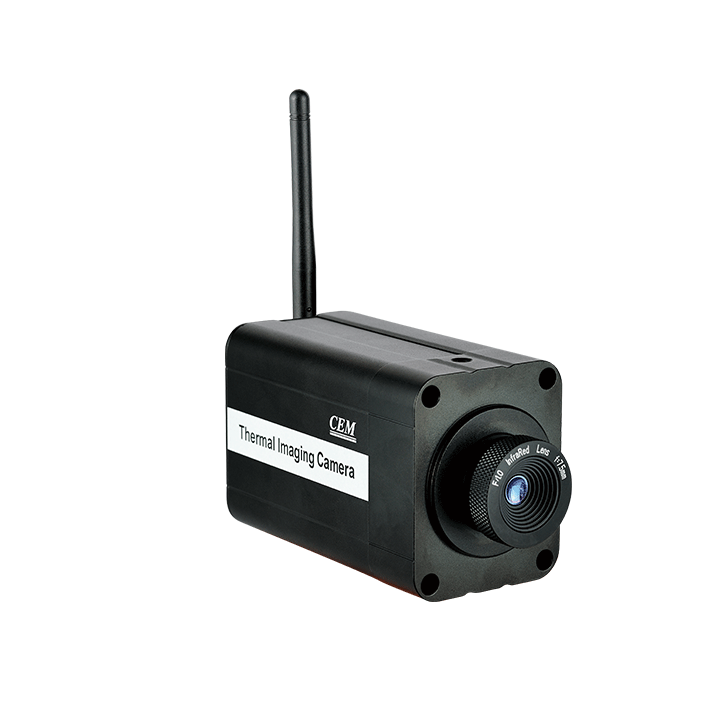

CEM DB-640 Thermal Imager (600~2000℃, 0.6mrad, 640×512 pixels)

Imaging and optical data

Field of View (FOV)/Minimum focus distance: 22°×17.6°

Special range: 0.8~1.1μm

Spatial resolution (IFOV): 0.6mrad

Thermal sensitivity/NETD: <1℃@﹢600℃

Image Frequency: 30Hz

Focal length: 25mm

IR Resolution: 640×512 pixels

Object temperature range: 600 to 2000°C

                          1112℉ to 3632°F

Accuracy: 2% of reading

Interfaces: composite video

Video out: Composite(PAL and NTSC)

Input voltage: DC 5V

Ethemet type, connector type, video steaming: 100Mbps, RJ-45, H.264

Alarm output: 2 relay output

Options Lens

11mm: 8mm (FOV=68.8°×55°)

22mm: 12mm (FOV=45.8°×36.7°)

33mm: 50mm (FOV=11°×8.8°)

      75mm (FOV=7.3°×5.9°)


Accessories:

Infrared camera with lens,

CVBS cable, Gift box.
