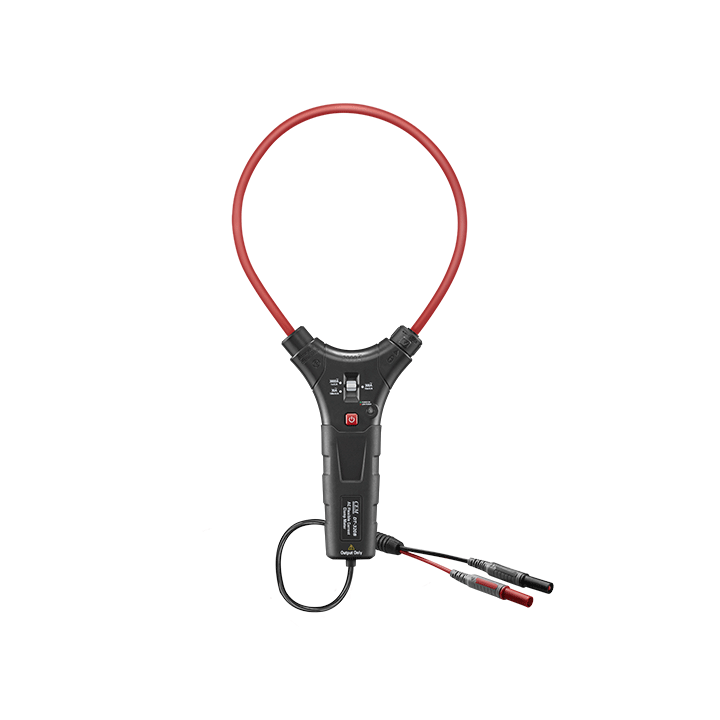

CEM DT-320BS AC Flex Clamp Adaptor (3000A AC, 254mm head cable)

10”(254mm) head cable length(320BS)

Function: Max Range - Measurement Range - Basic Accuracy - Output Voltage

AC Current 50~400Hz
30A AC  ;  =30.00A  ;  100mV/A  ;  ± 3.0%

300A AC  ;  30.0A-300.0A  ;  10mV/A  ;  ± 3.0%

3000A AC  ;  300A-3000A  ;  1mV/A  ;  ± 3.0%

Size(HxWxD): 180mm x 106mm x 28mm

Weight: 210g

Accessories: Gift box with carrying case, 1.5V AAA x 2 batteries.




18”(457mm) head cable length(320B)

10”(254mm) head cable length (320BS)

3000A AC current measurement

Slide switch to change range

Voltage output to universal voltage meters

7.5mm coil diameter for tight space measurement

2 meter extension cable

Low Bart. LED indicator

Ergonomically designed one hand operation

CAT IV 600V/CAT III 1000V safety standard
