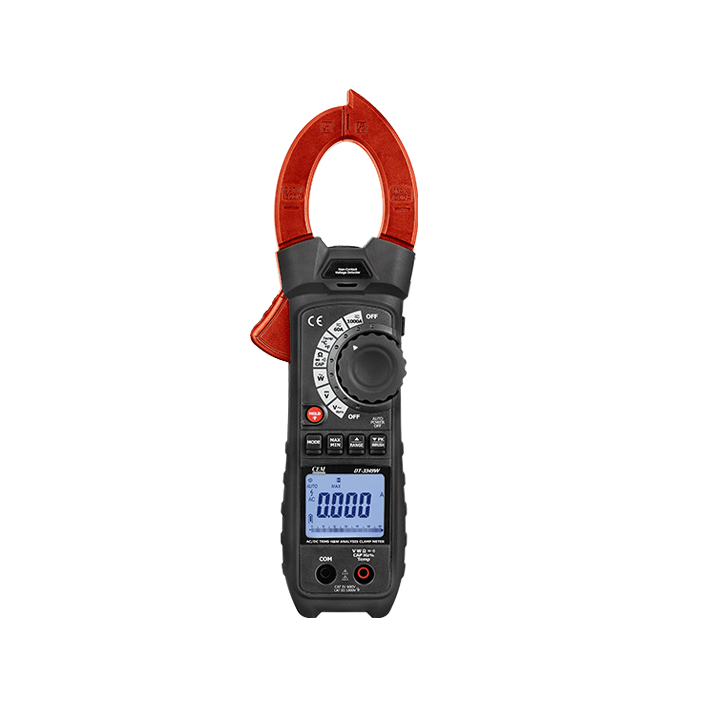

CEM DT-3349W AC/DC Power Quality Clamp Meter (999.9KW, AC/DC-1000A/600V, True RMS)

Function: Max Range - Max. Resolution - Basic Accuracy

AC True RMS Current

60.00A  ;  100mA  ;  ±(2.5%+8d)

1000A  ;  1A  ;  ±(3%+8d)

DC Current

60.00A  ;  100mA  ;  ±(2.5%+0.2A)

1000A  ;  1A  ;  ±(3%+8d)

DC Voltage: 600.0mV, 6000V,60.00V,600.0V,1000V  ;  0.1mV  ;  ±(0.8%+20d)

AC True RMS Voltage: 6.000V,60.00V,600.0V,1000V  ;  1mV  ;  ±(1.0%+5d)

Resistance: 600.0Ω,6.000kΩ,60.00kΩ,600.0kΩ,6.000MΩ,60.00MΩ  ;  0.1Ω  ;  ±(1%+4d)

Capacitance: 6.000nF,60.00nF,600.0nF,6.000uF,60.00uF,600.0uF,6.000uF  ;  1pF  ;  ±(5%+30d)

Frequency: 6.000Hz,60.00Hz,600.0Hz,6.000KHz,60.00KHz,600.0KHz,10MHz  ;  0.001Hz  ;  ±(1.0%+5d)

Frequency: 10Hz to 10kHz,40Hz to 100Hz  ;     ;  ±(1.0%+5d)

Duty cycle: 0.5%~99.9%  ;  0.1  ;  ±(1.2%+10d)

Temperature: ﹣50℃~﹢1000℃,﹣58℉~﹢1832℉  ;  0.1℃/℉  ;  ±(3%+5℃/9℉)

Total Harmonic Distortion: 99.9%  ;  0.1%  ;  ±(3%+10d)

Harmonic Distortion measurement: 99.9%  ;  0.1%  ;  ±(5%+10d)

Active Power: 999.9KW  ;     ;  A.error x v.reading+V.error x A.reading

Power Factor: ﹣1.0~0,0~1.0  ;     ;  ±(3%+1d)

Diode test: Forward DCA is approx.1mA, open circuit Voltage MAX, 3V

Continuity check: Buzzer sounds at 50Ω

Size(HxWxD): 230mm x 76mm x 40mm

Weight: 315g


Accessories: Test leads, temperature probe, gift box with carrying case, 9V battery


Details

 Datasheet


Features

True RMS

Non-contact voltage detection

Inrush current measurement for motors

Low pass filter for variable frequency drives

Continuity Beeper

Min, Max and Smart Data Hold, Peak hold

Auto torch-light when clamping

Linterna automática durante el apriete

Large 10,000 count display with active backlight and analog bar graph

Auto Power Off

Maximum jaw opening 1.63” (42mm)

CAT IV 600 V /CAT III 1000 V safety standard

Bluetooth interface

Meterbox iMM & cloud service
