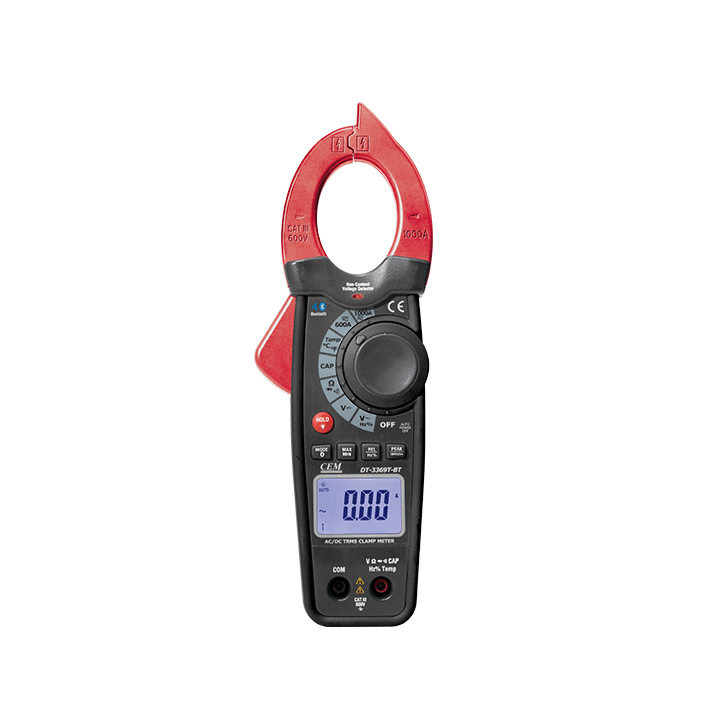

CEM DT-3369T/BT AC/DC Clamp Meters (AC/DC-1000A/600V)
制造商: CEM Model: DT-3369T/BT 来源: China 保障: 12 Month - 报价要求
- 联系
Function: Max Range - Basic Accuracy - Max. Resolution
Current DC: 1000A ; ±(2.5%+5d) ; 1mA
Current AC: 1000A ; ±(3.0%+4d) ; 10mA
Voltage DC: 600V ; ±(0.8%+2d) ; 0.1mV
Voltage AC: 600V ; ±(1.0%+4d) ; 0.1mV
Resistance: 60MΩ ; ±(1.0%+4d) ; 0.1Ω
Capacitance: 6000µF ; ±(3.0%+5d) ; 0.01nF
Frequency: 10MHz ; ±(1.2%+3d) ; 0.001Hz
Duty Cycle: 99.90% ; ±(1.2%+3d) ; 0.10%
Temperature: 1000ºC/1832ºF ; ±(3.0%+3d) ; 0.1ºC/ºF
Inrush Current: 1000A ; 0.1A ; ±(2.0%+5d)
Continuity check: Threshold 40Ω, test current <0.5mA
Diode test: Test current of 0.3mA typical, open circuit voltage <3V DC typical
Size(HxWxD): 229mm x 80mm x 49mm
Weight: 303g
Accessories: Test leads, gift box with carrying case, 9V battery, Temperature probe(3368/3369T-BT)
Datasheet
Features | DT-3368T | DT-3369T/BT |
Digital display counts | 6600 | 6600 |
Analog Bargraph/Segments | */60 | */60 |
Electronic overload protection | * | * |
Continuity buzzer & Diode check | * | * |
Data Hold function | * | * |
DCA Zero function | * | * |
Min/Max Hold function | * | * |
Auto Power Off | * | * |
Low battery indication | * | * |
AC/DC Current | * | * |
True RMS measurements | * | * |
1.2”(30mm) Clamp jaw opening | * | |
Inrush current function | * | * |
Peak Voltage function | * | |
Bluetooth interface | * | * |
