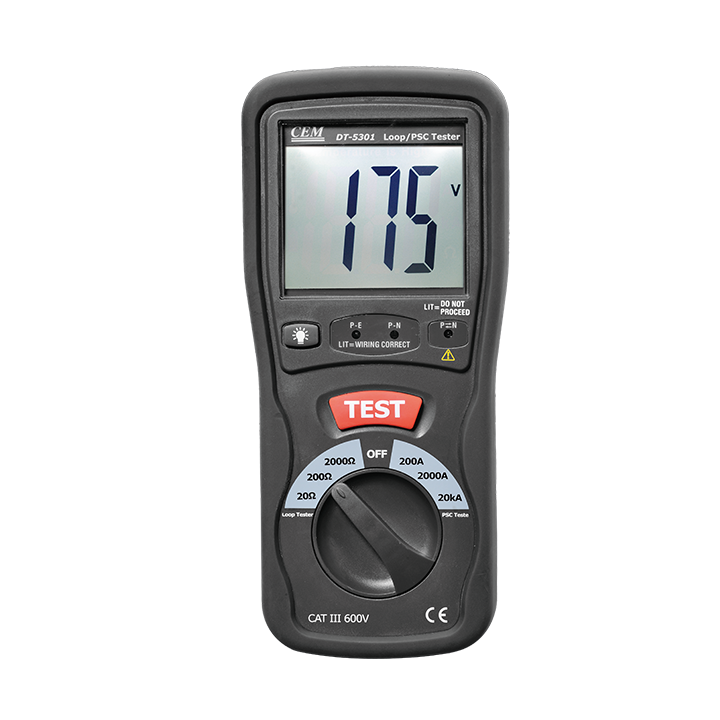

CEM DT-5301 LOOP/PSC Tester (2000Ω, 20KA, 50V ~ 250V)

Function: Max Resolution ; Accuracy

Loop Impedance: 20/200/2000Ω ; ±2.5% rdg ±4dgts

AC Test Current: 20Ω 25A; 200Ω 2.3A;2000Ω 15mA ; ±2%rdg ±5dgts

AC Test Period: 20Ω 20ms; 200Ω 40ms;2000Ω 280ms ; ±2%rdg ±5dgts

PSC: 200A (2.3A 40ms); 2000A(25A 20ms); 20KA (25A 20ms) ; Consider accuracy impedance

Voltage: 50V ~ 250V ; ±2%rdg ±5dgts

Resistance: 0.1kΩ ; ±1.0%rdg ±2dgts

Operating Voltage: 230V + 10% - 15% (195V ~ 253V) 50Hz

Safety Standard: IEC61010-1 CATIII 600V

Size (H x W x D): 200mm x 92mm x 50mm

Weight: 582g


Accessories:

Test leads and “AA” Battery x 6, gift box with carrying case.
