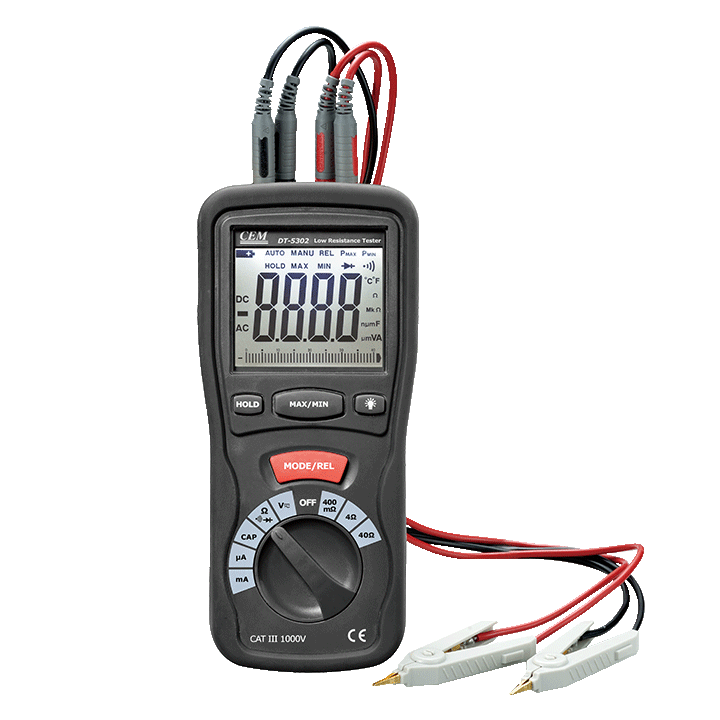

CEM DT-5302 四线低电阻测量仪 (Kelvin(4-wire), 40Ω; ±(1.0%+5d))

Function: Max. Range  ;  Basic Accuracy

Low Resistance: 400mΩ, 4Ω, 40Ω  ;  ±(1.0%+5d)

Voltage DC: 1000 V  ;  ±(1.0%+2d)

Voltage AC: 1000 V  ;  ±(1.2%+5d)

Current DC: 400mA  ;  ±(1.0%+2d)

Current AC: 400mA  ;  ±(1.2%+5d)

Resistance: 40MΩ  ;  ±(1.0%+5d)

Capacitance: 40mF  ;  ±(3.0%+10d)

Size (H x W x D): 200mm x 92mm x 50mm

Weight: 582g


Accessories

Rubber holster, 4-wir e cab le and 6x1.5V “AA”battery, test leads, gift box with carrying case.


Detail

Datasheet


Features

High accuracy, high resolution portable Milliohm Meter or field use

Digital display 4000 counts

Safety design

Relative zero & Data Hold

MAX/MIN recording mode

Auto Power Off

400m Low Resistance & Wide 40mF capacitance range

Diode Check & Continuity Test
