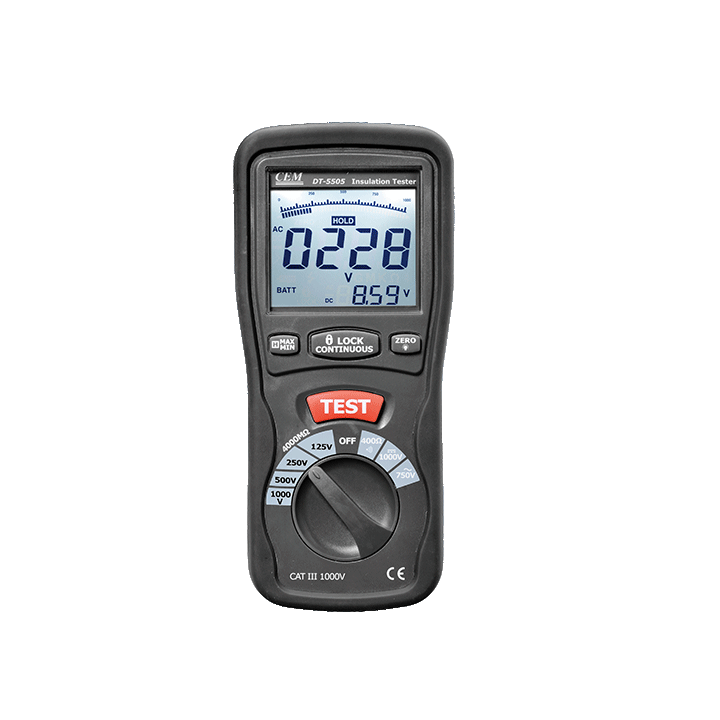

CEM DT-5505 Insulation Testers (AC-750V, DC-100V, 4000MΩ)

Function: Range - Max Resolution - Basic accuracy

Voltage AC: 750V  ;  1V  ;  ±1.2%rdg ±10dgts

Voltage DC: 1000V  ;  1V  ;  ±0.8%rdg ±3dgts

Resistance: 40Ω, 400Ω  ;  0.01Ω, 0.1Ω  ;  ±1.5%rdg ±6dgts

Insulation Resistance: 4M,40M,400M,4000MΩ  ;  1kΩ~1MΩ  ;  ±2.0%rdg ±6dgts

Test Voltage & Current: 125V/250V/500V/1000V & 1mA nominal

Continuity Test: Active Sound Level: ≤40Ω, Test current ≤200mA

Operating Temp: 0ºC~40ºC (<80%R.H.)

Storage Temp: -10ºC~60ºC (<70%R.H.)

Power Source: 1.5V “AA” size Battery x 6

Size ( H x W x D): 200mm x 92mm x 50mm

Weight: 582g


Accessories:

Test leads, “AA” Battery x 6 and gift box with carrying case.

Detail

Datasheet
