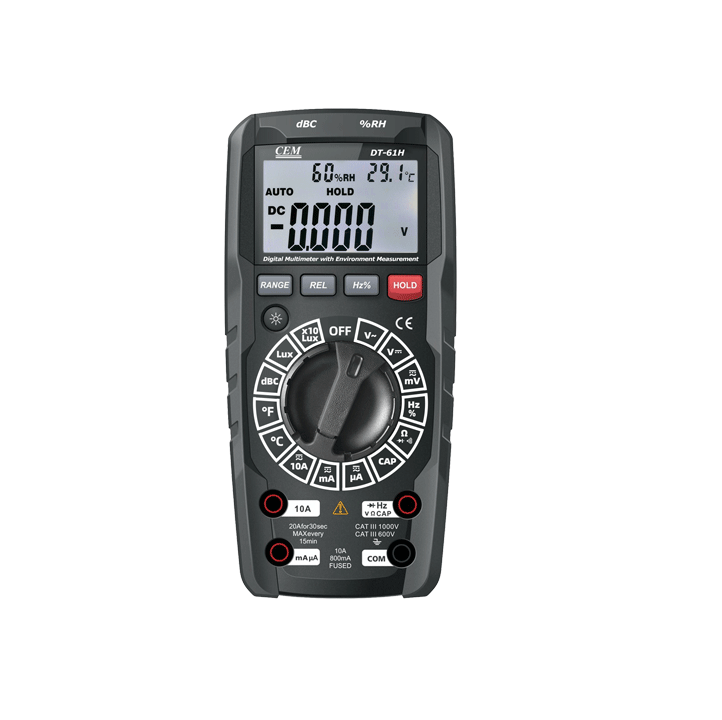

CEM DT-61H 6 in 1 Digital Multimeter with Environment Measurement (600V,10A,-20~750℃)

Function  -  Max. Range  -  Max.Resolution  -  Basic Accuracy

Light

20,000Lux  ;  0.1Lux  ;  0.5%±10d

40,000Lux  ;  0.1Lux  ;  0.5%±10d

Sound: 100dB  ;  0.1dB  ;  ±3.5dB

Humidity: 99%RH  ;  0.1%RH  ;  ±3.5%RH

Temperature

﹣20 ~750℃  ;  0.1°up to 400°,1°over 400°  ;  ±3%±3℃

﹣40 ~1400℉  ;  0.1°up to 400°,1°over 400°  ;  ±3%±5℉

IR Temperature: ﹣20 ~750℃/﹣40 ~1400℉  ;  0.1º up to 400º,1º over 400º  ;  ±1%±1ºC/1.8℉

NCV: 50~1000V

Voltage DC: 600V  ;  0.1mV  ;  ±0.5%±2d

Voltage AC: 600V  ;  0.1mV  ;  ±1.2%±10d

Current DC: 10A  ;  0.1uA  ;  ±1.0%±2d

Current AC: 10A  ;  0.1uA  ;  ±1.0%±2d

Resistance: 40MΩ  ;  0.1Ω  ;  ±0.8%±2d

Capacitance: 100uF  ;  0.01nF  ;  ±3.5%

Frequency: 10MHz  ;  0.001Hz  ;  ±1.5%

Duty Cycle: 99.9%  ;  0.1%  ;  ±1.2%

Diode Check: Open voltage 2.8VDC; Test current 1mA

Continuity Test Threshold 30Ω


Accessories

9V battery, Test leads and K-Type temperature probe. Infrared Temperature Probe (Option IR-82)


Detail

Datasheet


Features

• The Sound Level function can be used to measure noise in factories, schools, offices and home, etc, checking acoustics of studios, auditoriums and hi-fi installations.

• The Light function is used to measure illuminance in the field. It is fully cosine corrected for the angular incidence of light. The sensitive component of light used in the meter is a very stable, long life silicon ciode.The Humidity/Temperature uses a humidity/semiconductor sensor and K type thermo couple.

• The DMM function include ACV, DCV, ACA, DCA Resistance, Capacitance, Frequency, Duty Cycle, Diode, Continuity test and Non-contact AC voltage detector.

• Backlight for LCD, knob Switch

• Built-in InfraRed Thermometer
