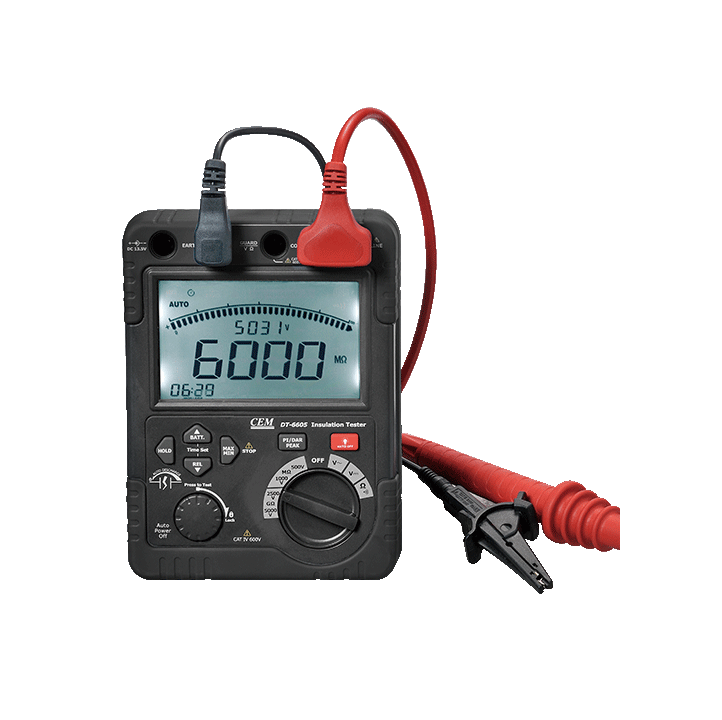

CEM DT-6605 High Voltage Insulation Tester (5000V, 6000Ω)

Insulation resistance

Range: 500V

Measuringrange (Auto ranging): 0~6.000MΩ/6~60.00MΩ/60~600.0MΩ/600~6000MΩ;

Accuracy: ±5%rdg ±3dgt ; ±20% (>6GΩ or more)

Short Circuit Current: 1.3mA approx

Rated test Current (at load Resistance): 1mA-1.2mA  0.5MΩ

Open circuit voltage: 500VDC/+20%-0%

Range: 1000V

Measuringrange (Auto ranging): 0~6.000MΩ/6~60.00MΩ/60~600.0MΩ/600~6000MΩ;

Accuracy: ±5%rdg ±3dgt ; ±20% (>6GΩ or more)

Short Circuit Current: 1.3mA approx

Rated test Current (at load Resistance): 1mA-1.2mA  1MΩ

Open circuit voltage: 1000VDC/+20%-0%

Range: 2500V

Measuringrange (Auto ranging): 0~60.00MΩ/60~600.0MΩ/0.6~6.000GΩ/6~60.00GΩ

Accuracy: ±5%rdg ±3dgt ; ±20% (>6GΩ or more)

Short Circuit Current: 1.3mA approx

Rated test Current (at load Resistance): 1mA-1.2mA  2.5MΩ

Open circuit voltage: 2500VDC/+20%-0%

Range: 5000V

Measuringrange (Auto ranging): 60~60.00MΩ/60~600.0MΩ/0.6~6.000GΩ/6~60.00GΩ

Accuracy: ±5%rdg ±3dgt ; ±20% (>6GΩ or more)

Short Circuit Current: 1.3mA approx

Rated test Current (at load Resistance): 1mA-1.2mA  5MΩ

Open circuit voltage: 5000VDC/+20%-0%

Continuity check: Buzzer sounds at 50Ω

Display: 6000 Counts

Current consumption: About 1000mA (During measurement)

Voltage AC/DC

Measuringrange (Auto ranging): 70~600.0V (50~1kHz)

Accuracy: ±1.5%rdg ±5dgt

Current consumption: 25mA approx.

Resistance

Measuringrange (Auto ranging): 0~600.0Ω / 600~6000Ω

Accuracy: ±1.5%rdg ±10dgt

Current consumption: 25mA approx.

Withstand Voltage: 5320V AC for 5 seconds

Safety standard: IEC 61010-1 CAT IV 600V Pollution Degree 2

Power supply: DC12V : R14 x 8

Dimensions: 198 ( L) x 148 (W) x 86 ( D) mm

Weight: 1438g approx.

Accessories

Test leads, Instruction Manual and 120V/250V AC adaptor
