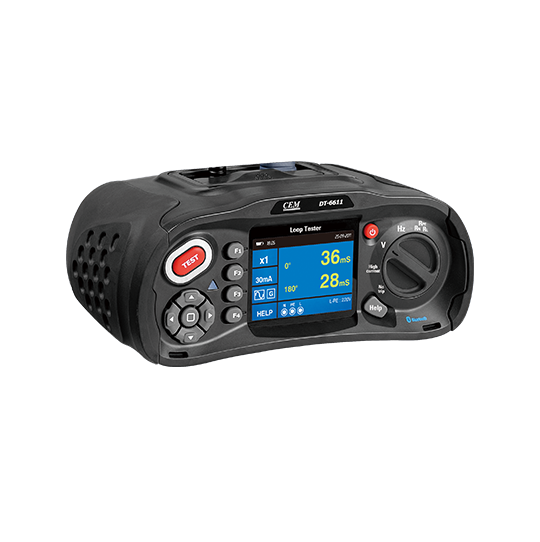

CEM DT-6611 LOOP/PSC Tester (1999Ω, 20KA, 440V)

Measurement Specifications: Range ; Resolution ; Accuracy

Loop Impedance: 0.05…1999Ω: 0.01…1Ω ; ±(5%rdg±5Digits)

Resistance neutral connector: 0.05…19.99Ω ; 0.01Ω ; ±(5%rdg±5Digits)

Resistance phase connector: 0.05…19.99Ω ; 0.01Ω ; ±(5%rdg±5Digits)

Resistance earth connector: 0.05…1999Ω ; 0.01…1Ω ; ±(5%rdg±5Digits)

Prospective short circuit current: 0…20KA ; 1A ; 10A

Voltage: 0…440V ; 1V ; ±(3%rdg±3Digits)

Mains frequency: 10…200Hz ; 0.1Hz ; ±(1%rdg±3Digits)

Contact voltage: 25V/50V(selectable) ; ___ ; ___
