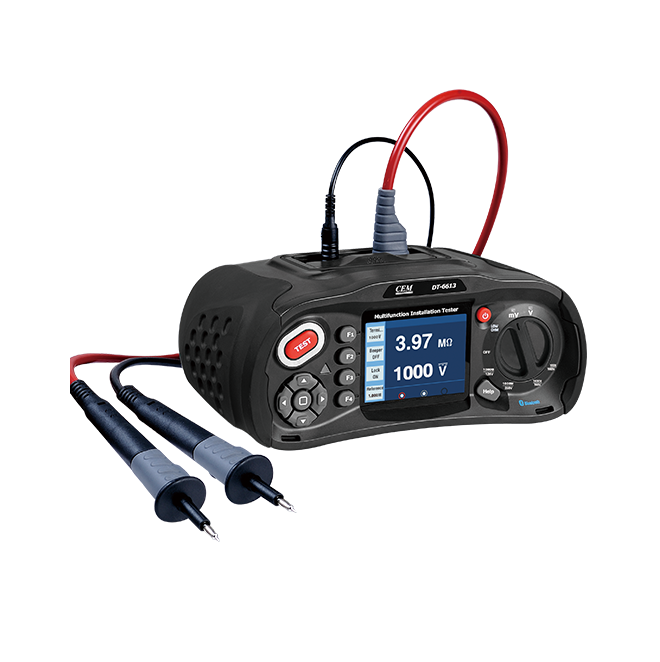

CEM DT-6613 Insulation with Low Ohm Tester (1000V, 2000Ω)

Insulation resistance

Range: 125V

Measuring range(Auto ranging): 0.125-1000MΩ

Accuracy: ±3%rdg±2dgt

Short Circuit Current: 1mA approx

Rated test Current(at load Resistance): 1mAatload 125kΩ

Open circuit voltage: 125VDC/+10%-0%

Range: 250V

Measuring range(Auto ranging): 0.250-1000MΩ

Accuracy: ±3%rdg±2dgt

Short Circuit Current: 1mA approx

Rated test Current(at load Resistance): 1mAat load 250kΩ

Open circuit voltage: 250VDC/+10%-0%

Range: 500V

Measuring range(Auto ranging): 0.500-1000MΩ

Accuracy: ±3%rdg±2dgt

Short Circuit Current: 1mA approx

Rated test Current(at load Resistance): 1mAat load 500kΩ

Open circuit voltage: 500VDC/+10%-0%

Range: 1000V

Measuring range(Auto ranging): 1.000-1000MΩ

Accuracy: ±3%rdg±2dgt

Short Circuit Current: 1mA approx

Rated test Current(at load Resistance): 1mAat load 1MΩ

Open circuit voltage: 1000VDC/+10%-0%

Voltage


AC/DCV

Measuring range(Auto ranging): 0-600.0V (50-1kHz)

Accuracy: ±1.5%rdg±5dgt

AC/DC mV

Measuring range(Auto ranging): 0-500.00mV  (50-1kHz)

Resistance

5VDC Output

Measuring range(Auto ranging): 0-20.00Ω / 20.0-200.0Ω / 200-2000Ω

Accuracy: ±1.5%rdg±3dgt

Continuity check: Buzzer sounds at 50Ω

Display: 4000 Counts

Current consumption: About 30mA

Safety standard: IEC 61010-1 CATⅣ 600V Pollution Degree 2

Power supply: DC 12V: 8 x 1.5V"AA" batteries

Accessories: Test leads, Instruction Manual and 120V/250V AC adaptor

Size(HxWxD): 220mm x 96.5mm x 60.5mm

Weight: 631g


Accessories

Test leads, 8 x1.5V“AA” batteries, gift box with carrying case.
