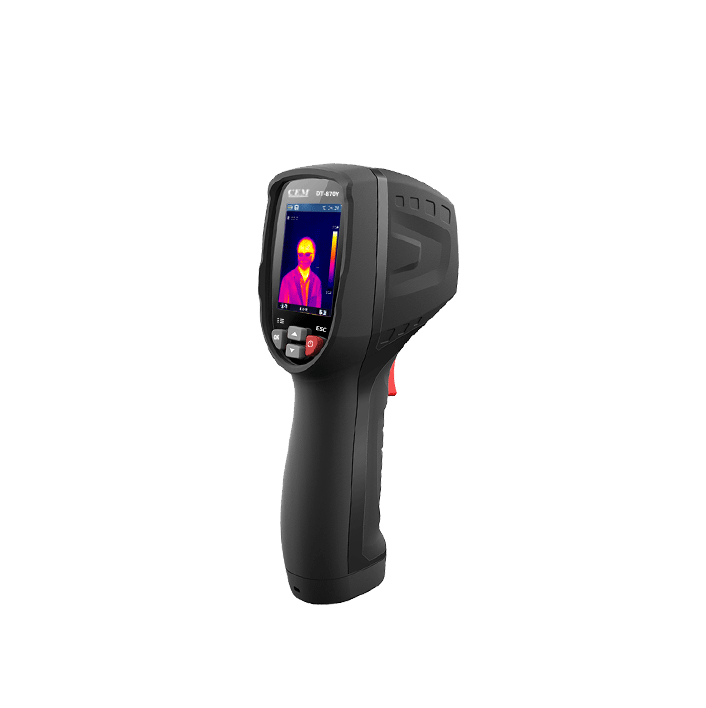

CEM DT-870Y Thermal imager ( -20~380°С, 80x80 px)

• 80x80 pixel thermal imaging system.

• 6400 points real temperature fast measurements

• Hot,Cold,Center three temperature tracking function.

• Large, easy-to-read, bright graphical TFT display

• 50Hz fast Thermal image frame rate

• Bluetooth image instant share & save with iOS and Android smart device

• Scene temperature range Lock function.

• With LED flashlight function

• Long running time up to 8 hours with rechargeable battery.

• Smart and compact design

• Rugged industrial design

Specifications

Temperature measuring range: -20 to +380 ° С

IR resolution: 80 x 80

Viewing angle: 21x21 °

Frequency: 50 Hz

Measurement accuracy: ± 2 ° C

Sensitivity: 0.1 ° C

Focusing: fixed, 0.5m from the object

USB output: Yes

Bluetooth:  Yes

Inner memory: Yes, up to 20 VMR photos

Change in emissivity: Yes

Analysis: Automatic recognition of hot, cold and center points

Photo format: BMP

Performance: up to 6 hours in standard operation

Degree of protection: IP54

Color palette: 4 (rainbow, heated iron, grayscale, inverted gray)

Weight: About 300gr
