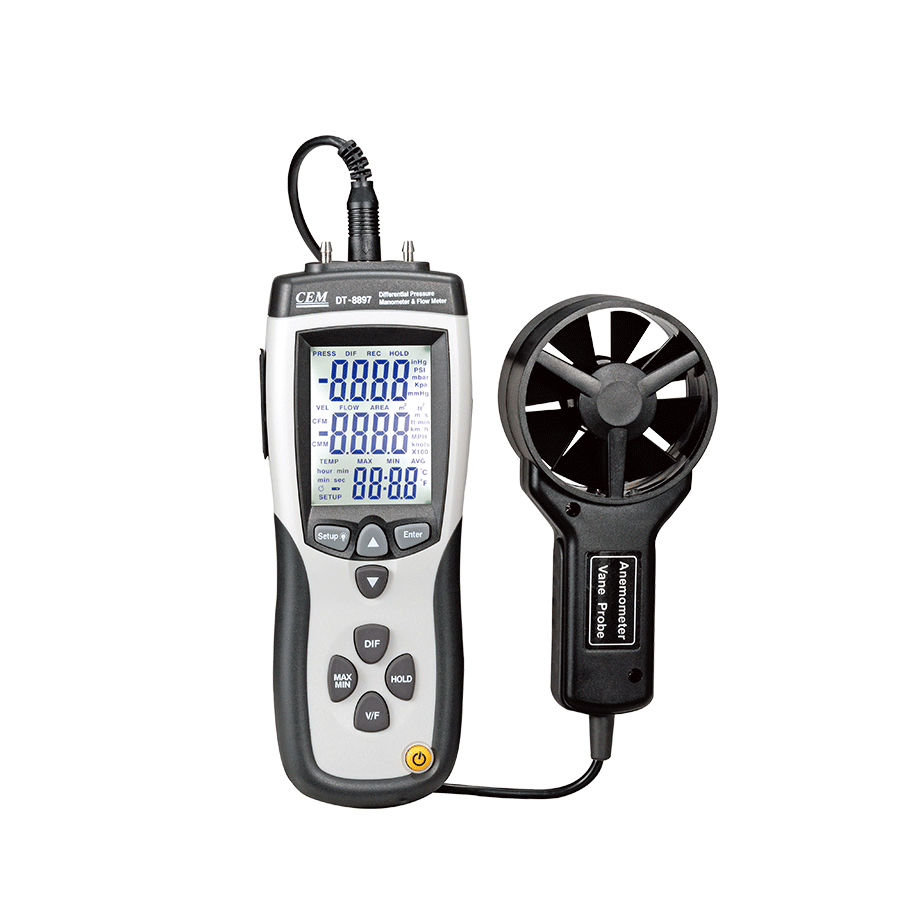

CEM DT-8897H Differential Pressure Manometer & Flow Meter (2.000Psi, 0.1~25m/s)

Manometer

Accuracy: ±0.3%FSO

Repeatability: ±0.2%(Max.+/﹣0.5%FSO)

Linearity/Hysteresis: ±0.29%FSO

Pressure Range: ±2psi(±55.40 inH2O)

Units / Range / Resolution:

       psi / 2.000 / 0.001

       mbar / 137.8 / 0.1

       kPa / 13.78 / 0.01

       inHg / 4.072 / 0.001

       mmHg / 103.4 / 0.1

Flow Meter

Air Velocity Range / Resolution / Accuracy

       m/s(meter per second): 0.1~25.0 / 0.01 / ±5%±1m/s

       ft/min(feet per minute): 20~4925 / 1 / ±5%±1ft/min

       km/h(kilometers per hour): 0.3~90.0 / 0.1 / ±5%±1km/h

       MPH(miles per hour): 0.2~55.8 / 0.1 / ±5%±1MPH

       Knots(nautical miles per hour): 0.2~48.5 / 0.1 / ±5%±1knots

Temperature Range / Resolution / Accuracy

       °C: 0 ~ 50.0°C / 0.1 / ±1.0°C

       °F: 32.0 ~ 122.0°F / 0.1 / ±2.0°F

Air Flow Range / Resolution / Area

       CFM: 0-999.900ft³/min / 0.001~100 / 0-999.9ft²

       CMM: 0-999.900m³/min / 0.001~100 / 0-999.9m²

Size(HxWxD): 210mm x 75mm x 50mm

Weight: 280g

Accessories : 9V battery, USB cable, software, Anemo probe, Soft tube and gift box with carrying

case.
