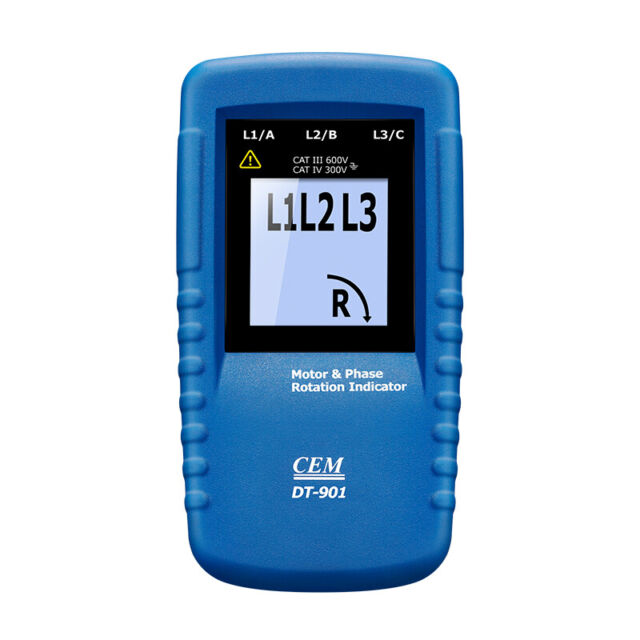

CEM DT-901 Phase Rotation Indicator / Socket Polarity and Earth Leakage Tester (40V ~ 690V AC, 1mA)

Nominal voltage: 40V ~ 690V AC

Frequency range: 15 ~ 400Hz

Current pickup: 1mA

Nominal test current(per phase): 1mA

Power supply: From unit under test

Electrical safety: IEC61010/EN61010;IEC61557-7/EN61557-7

Protection level: CATIII 600V

Type of protection: IP40

Operating temperature: 0ºC to 40ºC

Size(HxWxD): 128mm x 68mm x 30mm

Weight: 185g

Detail

Datasheet
