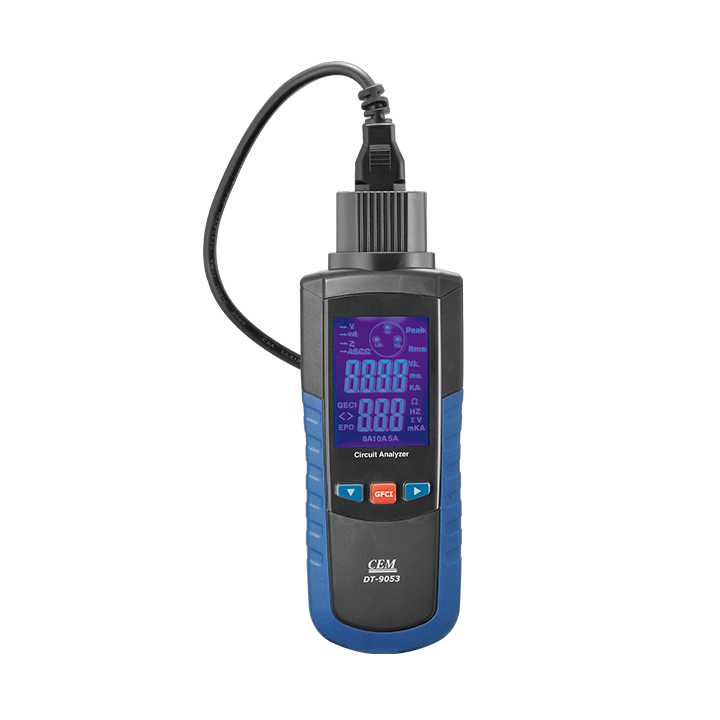

CEM DT-9053 Circuit Analyzer (121.0~354.0 VAC)

Function: Range - Resolution - Accuracy

Line voltage: 85.0~250.0 VAC  ;  0.11V  ;  ±1.0%rdg ±0.2dgts

Peak line voltage: 121.0~354.0 VAC  ;  0.1V  ;  ±1.0%rdg ±0.2dgts

Frequency: 45.0~65.0 Hz  ;  0.1Hz  ;  ±1.0%rdg ±0.2dgts

%voltage drop: 0.1% ~99.9%  ;  0.1%  ;  ±2.5%rdg ±0.2dgts

Voltage loaded: 10.0 ~ 250.0 VAC  ;  0.1V  ;  ±2.5%rdg ±0.2dgts

Neutral-Ground V: 0.0 ~ 10.0 VAC  ;  0.1V  ;  ±2.5%rdg ±0.2dgts

Impedance-Hot neutral & Ground: 0.00Ω~3.00Ω> 3Ω  ;  0.01Ω  ;  ±2.5%rdg ±0.02dgts

GFCI Trip Time: 1ms to 6.5ms counter  ;  1ms  ;  ±1.0%rdg ±2ms

GFCI Trip Current: 6.0 ~ 9.0mA  ;  0.1mA  ;  ±1.0%rdg ±2mA

EPD Trip Current: 30.0 ~ 37.0mA  ;  0.1mA  ;  ±1.0%rdg ±2mA

Size(HxWxD): 200mm x 70mm x 45mm

Weight: 206g


Accessories: Clamshell
