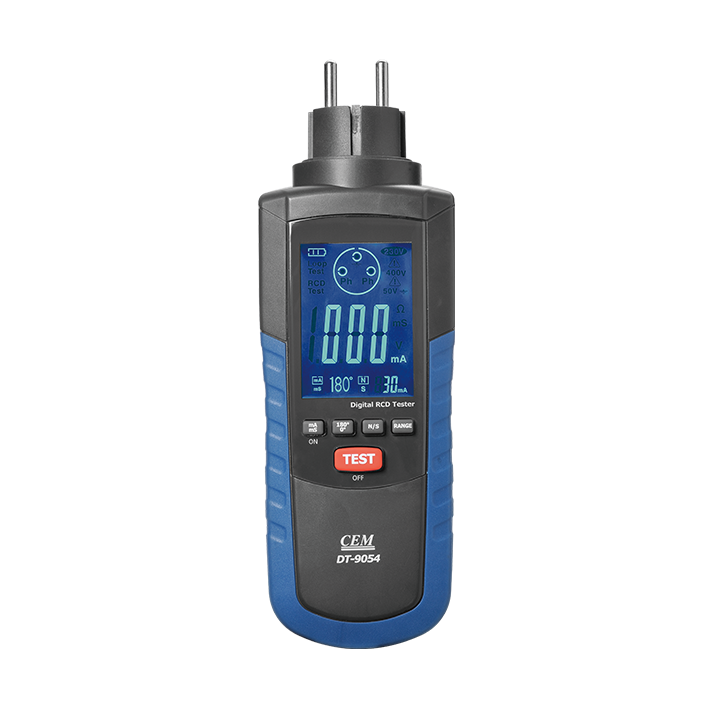

CEM DT-9054 RCD Tester (650mA)

Operational voltage: 195V - 253V /45 - 65Hz

Trip current settings: 10mA, 30mA, 100mA, 300mA, 500mA, 650mA

Trip current measurement accuracy: ±10% ±2digits

Trip time ranges: 0ms – 300ms

Trip time accuracy: ±5% ±3digits

Ramp test: x0.4 to 1.1 times nominal rated current, accuracy±10 %

Size(HxWxD): 200mm x 70mm x 45mm

Weight: 253g


Accessories: Test leads, 4 x “AA” batteries and Clamshell.

Detail

Datasheet


Features

Fully programmed operation

Accurate digital read out of tripping time and Current

450ms readout for testing latest delay action breakers

Two LED lamps give quick check for correct wiring

Compact, lightweight and simple to operate

Zero cross circuitry permits testing at 0° and 180° portion of sine wave
