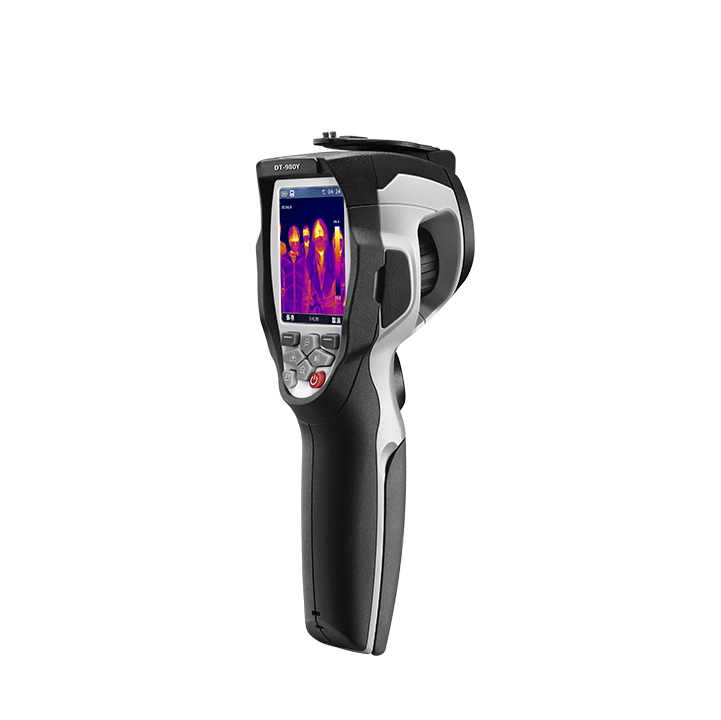

CEM DT-980Y 热像仪 (20°C~350°C; 80×80 pixels)

Imaging and optical data

Field of view (FOV)/Minimum focus distance: 17°x 17°/ 0.1m

Spatial resolution (IFOV): 3.78mrad

IR resolution: 80 × 80 pixels

Thermal sensitivity/NETD: < 0.1°C @ +30°C (+86°F) / 100 mK

Image frequency: 50Hz

Focus mode: Manual

Zoom: 1–32× continuous, digital zoom

Focal length: 9mm

Focal Plane Array (FPA)/Spectral range: Uncooled microbolometer/8–14 µm

Image presentation

Display: 2.8 in. LCD, 240 × 320 pixels

Image modes: IR image, Visual image, Image Fusion

Color palettes: IRON, Rainbow, Grey, Grey Inverted

Measurement

Object temperature range:  Filter mode: 32℃ to 42℃ (89.6°F to 107.6°F)

–20°C to +150°C (–4°F to +302°F)

0°C to +350°C (+32°F to +662°F)

Accuracy: ±0.5℃ in 32℃ to 42℃

±2°C (±3.6°F) or ±2% of reading (Environment temperature 10℃-35℃,object temperature > 0℃)

Measurement analysis

Spot: Center Spot

Automatic hot /cold detection: Auto hot or cold markers

Emissivity corection: Variable from 0.01 to 1.0

Measurement corrections: Emissivity, Reflected temperature

Storage of videos

Storage media: 8Gbytes Micro SD card

Video storage format: Standard MPEG-4 encode, 1280x960@30fps, on   memory card > 60 minutes

Video storage mode: IR/visual images; simultaneous storage of IR and visual images

Storage of images

Image storage format: Standard JPEG, including measurement data, on memory card > 6000 pictures

Image storage mode: IR/visual images; simultaneous storage of IR and visual images

Set-up

Laser: < class2

Set-up commands: Local adaptation of units, language, date and time formats, information of camera

Languages: multinational

Digital camera

Built-in digital camera: 5 Megapixels

Built-in digital lens data: FOV 59°

Data communication interfaces

Interfaces: USB-mini, audio, HDMI

USB: Data transform between camera and PC

         Live video between camera and PC

Video out: HDMI

Power system

Battery: Li-ion battery, 4 hours operating time

Input voltage: DC 5V

Charging system: In camera (AC adapter)

Power management: Automatic shutdown

Environmental data

Operating temperature range: 15°C to +30°C (59°F to +86°F)

Storage temperature range: –40°C to +70°C (–40°F to +158°F)

Humidity (operating and storage): 10%~90%

Drop test: 2m

Bump: 25g(IEC60068-2-29)

Vibration: 2g(IEC60068-2-6)

Physical data

Camera weight, incl. battery: <500g

Camera size (L × W × H): 224x77x96
