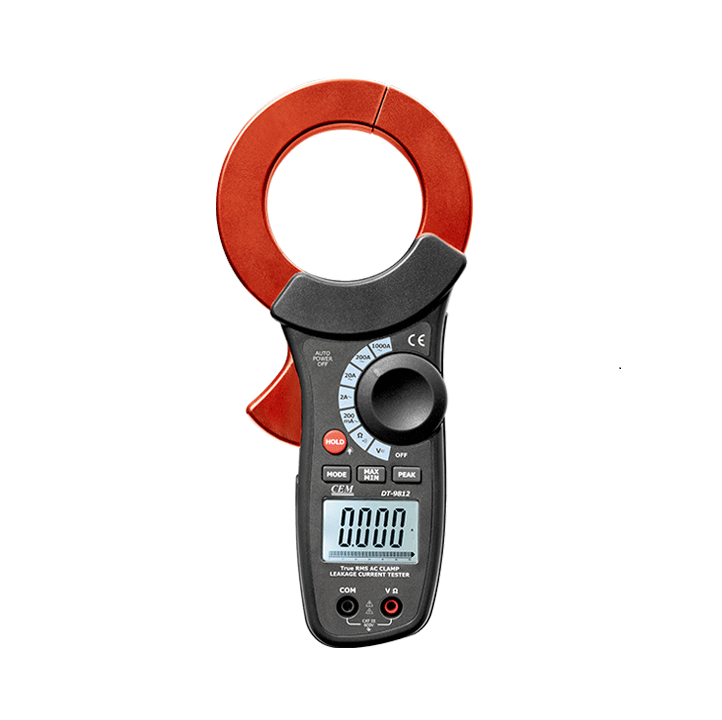

CEM DT-9812 AC Leakage Current Tester (AC-1000A, AC/DC-600V, True RMS)
制造商: CEM Model: DT-9812 来源: China 保障: 12 Month - 联系
Function: Range - Range - Accuracy(50/60Hz) - Accuracy(40~1kHz)
AC Current
200mA ; 0.1mA ; ±(1.5%+10d) ; ±(3.0%+10d)
2A ; 1mA ; ±(1.5%+10d) ; ±(3.0%+10d)
20A ; 10mA ; ±(1.5%+10d) ; ±(3.0%+10d)
200A ; 100mA ; ±(2.0%+10d) ; ±(3.5%+10d)
1000A ; 1A ; ±(5.5%+10d) ; ±(10%+10d)
AC Voltage: 600V ; 0.1V ; ±(1.0%+5d) ;
DC Voltage: 600V ; 0.1V ; ±(1.0%+5d) ;
Resistance: 600Ω ; 0.1Ω ; ±(1.0%+5d) ;
Continuity Test: Threshold 40Ω, Continuity Beeper 2KHz
Conductor size: Φ68mm max.
Frequency response: 40Hz-1kHz
Effect of external stray magnetic field Φ15mm 100A: 10mA AC max.
Applicable standards: IEC 61010-1 CAT.Ш 600V IEC 61010-2-032
Size (H x W x D): 250mm x 113mm x 45mm
Weight: 490g
Accessories: Gift box with carrying case and 9V battery, Test leads.
Datasheet
Features |
Large tranceformer jaws of 68mm diameter makes it possible to clamp on all three or four wires (3 phases) together for leakage current measurement. |
Frequency filter switch to eliminate the effect of the harmonics. |
Measurement from mA up to AC 1000A |
True RMS enables an accurate measurement for distorted waveforms. |
Peak hold function |
Data hold function: Allows for easy reading in dimly light or hard-to-reach locations |
Large LCD display with backlight |
International safety standard IEC61010-1 CAT.III 600V |
