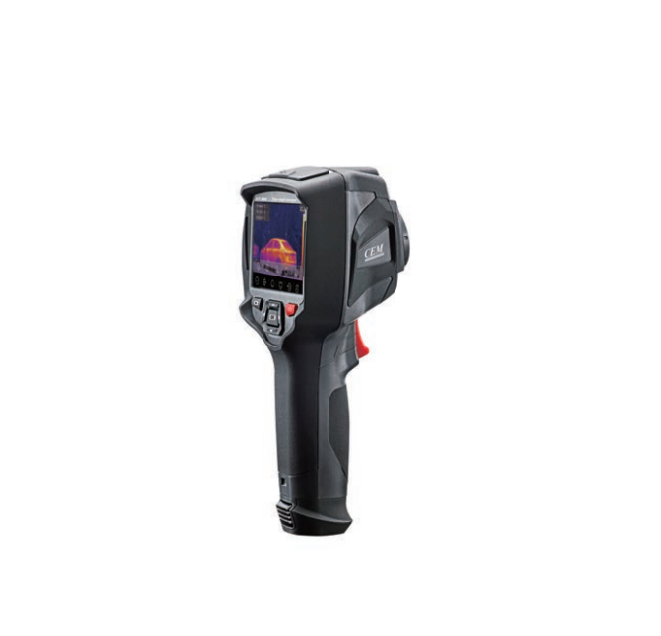

CEM DT-985A 先进热像仪 (-20°C-330°C,256x192)

IR resolution: Focal plane array (FPA), uncooled microbolometer: 256x192

Field of View (FOV): 40.4°x30.3°

Spatial resolution: (IFOV): 5.48mrad

Thermal  sensitivity/NETD: < 0.05°C @ +30°C/(+86oF), < 0.1°C/100mK

Image frequency: 9Hz

Focus:  Focus free

Image presentation

Display: 3.5" 640x480 touch screen

Image modes: IR image, visual image, picture in picture, AUF

Color palettes: IRON, Rainbow, Grey, Grey Inverted, Brown, Blue-red, hot-cold, Feather

Measurement

Object temperature range: -20°C-330°C (-4°F-302°F)

Accuracy: ±5°C (±3.6°F)/±3% of reading

Measurement analysis

Emissivity adjustable: 0.01~1.0 Adjustable

Automatic hot /cold detection: Auto hot or cold spotmeter marks

Set-up

Laser / floodlight:  <class2/while LED floodlight

Language selection: English, Chinese, French, German, Spanish, Japanese, Korean, Portuguese, Italian

Storage of videos/images

Storage media: 4Gbytes eMMC or 8GB SD card

Video storage format: Standard MPEG-4, 640x480@30fps, on memory card > 60 minutes

Image storage format: Standard JPEG, including measurement data, on memory card > 1000 pictures

Storage mode: IR/visual images; simultaneous storage of IR and visual images

Digital camera

Built-in visible light digital camera: 2M Pixels

Data communication interfaces

USB interfaces:

USB-micro, data transform between camera and PC

Remote control, live video

Wi-Fi connectivity: Wi-Fi connectivity allows to send images and data to mobile devices remote control, live video

Power system

Battery: Lithium polymer battery, 4 hours operating time

Input voltage: DC 5V

Charging system: In camera (AC adapter)

Power management: Automatic shutdown and sleep mode (user selectable)

Size(HxWxD): 228mm x 100mm x 90mm Weight: 520g

Accessories:

Hard transport case, 7.5mm lens, Tripod base, AC charger/Power supply, Battery, software CD-ROM, Handstrap, micro SD card, USB cable, Gift box
