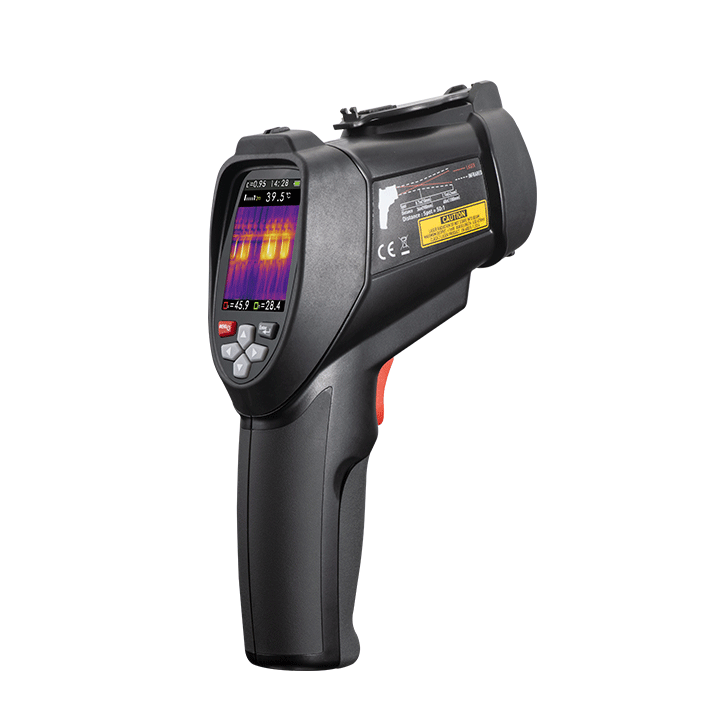

CEM DT-9870H 热像仪 (120 x 90 pixels, -20°C~400°C)

Imaging and optical data

IR resolution: 120 x 90 pixels

Thermal sensitivity (NETD): 60 mK

Image frequency: 30Hz

Object temperature range: -20°C to 400°C (-4°F to 752°F)

Basic accuracy: ±2°C (±3.6°F) or ±2% of reading

Field of View: 50° x 38°

Color palettes: GREY/GREY IRON/ IRON/RAINBOW

Detector data

Detector type: VOX microbolometer

Spectral range: 8-14μm

Single point infrared thermometer

Temperature range: -50°C to 1200°C (-58°F to 2192°F)

D:S: 50:1

Basic accuracy: ±1°C (±1.8°F) or ±1% of reading

Response Time: Less than 150ms

Emissivity adjustable: 0.10~1.0 Adjustable

Micro SD memory card: MAX. support 8GB

Image storage format: Standard JPEG, including measurement data, on memory card > 1000 pictures
