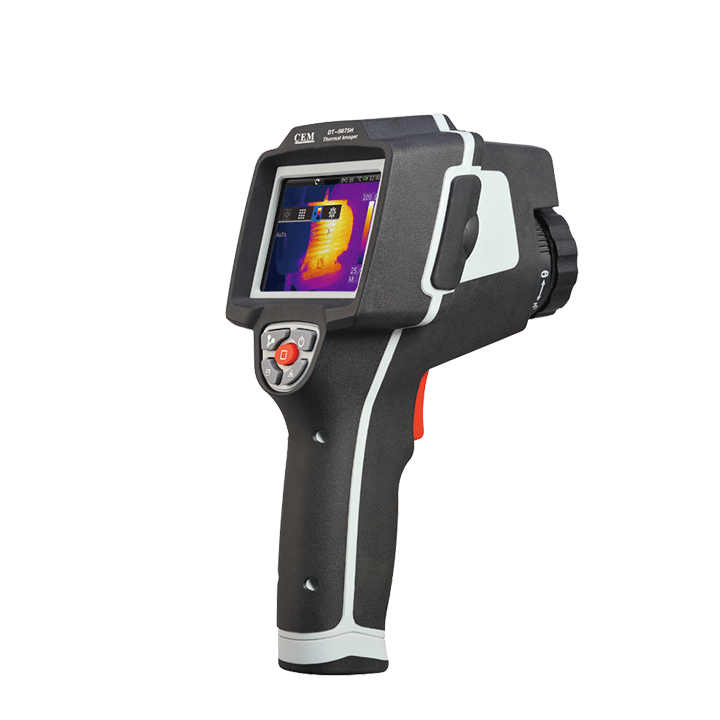

CEM DT-9871 热像仪 (-20°C~400°C, 80x80 pixels, 3.78mrad)

Imaging and optical data

IR resolution: 80x80

Field of view (FOV): 17°x17°

Minimum focus distance: 0.3m (0.99ft.)

Spatial resolution (IFOV): 3.78mrad

Thermal sensitivity/NETD: < 0.1°C

Image frequency: 50Hz

Focus: Manual

Zoom: 1-20x continuous, digital zoom

Rotate: 0-360°, continuous change by 1°

Image presentation

Display: 3.5" TFT , capacitive touch screen

Image modes: IR image only



Object temperature range: Low range: –20°C to +150°C (–4°F to +302°F) High range: 0°C to +400°C (+32°F to +752°F)

Accuracy: ±2°C (±3.6°F) or ±2% of reading

Measurement analysis

Spotmeter: 3

Emissivity adjustable: 0.01~1.0 Adjustable

Emissivity table: Emissivity table of predefined materials

Automatic hot /cold detection: Auto hot or cold spotmeter marks

Measurement corrections: Emissivity, ambient temperature, distance, relative humidity, offset temperature


Set-up commands: Local adaptation of units, language, date and time formats, information of camera

Languages: English, Chinese, French, German, Spanish

Storage of videos/images

Storage media: 4Gbytes Micro SD card

Video storage format: Standard MPEG-4, 640x480@30fps, on memory card > 60 minutes

Image storage format: Standard JPEG, including measurement data, on memory card > 1000 pictures

Storage mode: IR image only

Data communication interfaces

USB Interfaces: USB-mini, data transform between camera and PC

Video out: Composite(PAL and NTSC)

Power system

Battery: Lithium polymer battery, 4 hours operating time

Input voltage: DC 9V to 12V

Charging system: In camera (AC adapter)

Power management

Automatic shutdown and sleep mode (user selectable)

Environmental data

Encapsulation: IP65

Drop test: 2m


Hard transport case, 22mm lens, Sun Visor,

Tripod base, AC charger/Power supply,

Battery, Camera lens cap, software CD-ROM,

Handstrap, micro SD card, USB cable &

RCA cable, Gift box.
