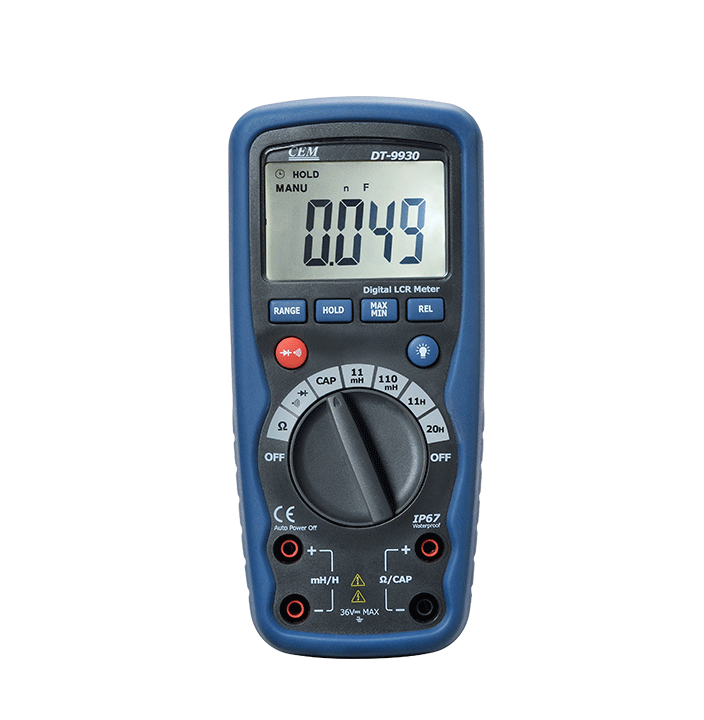

CEM DT-9930 LCR测试仪 (10MHz, ±1.5%)

Multimeter

Diode Check

Continuity Test

LCR

Function  -  Max Range  -  Max. Resolution  -  Basic Accuracy

Resistance: 110.00MΩ  ;  0.01Ω  ;  ±1.2% of rdg ±5 digits

Capacitance: 110.00uF  ;  1pF  ;  ±3.0% of rdg ±30 digits

Inductance: 20H  ;  1uH  ;  ±(2%+5)

Size(HxWxD): 182mm x 82mm x 55mm

Weight: 360g


Accessories

Test leads and 9V battery, gift box with carrying case.


Detail

Datasheet


Features

DT-9930

DT-9931

Digital display counts

11000

11000

Safety design

*

*

Data Hold

*

*

MAX/MIN recording mode

*

*

Auto Ranging

*

*

Auto Power Off

*

*

DMM + LCR

*
