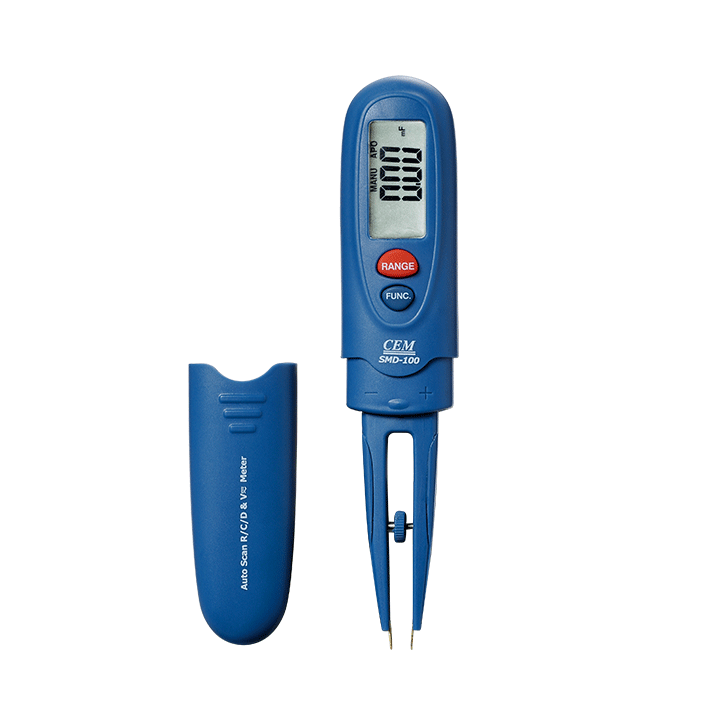

CEM SMD-100 智能电子元件测试仪 (DC/AC-600V)

Function  -  Range  -  Basic Accuracy

Voltage DC: 600mV/6V/60V/600V  ;  ±0.8%

Voltage AC: 600mV/6V/60V/600V  ;  ±1.0%

Resistance (Ω): 600/60k/60k/600k/6M/60M  ;  ±1.0%

Capacitance (F): 6n/60n/600n/6μ/60μ/600μ/6m/60m  ;  ±3.5%

Diode check: Open voltage 2.8Vdc, test current 1mA

Continuity test Threshold 35 Ω

Size (H x W x D): 184mm x 37mm x 23mm

Weight: 76g


Two LR44 (1.5V) button batteries and clamshell




Automatic DCV or ACV selection, Capacitance, Resistance, Continuity and diode selection

6000 counts LCD display

Auto scan DC/AC Voltage, resistance, capacitance, diode and continuity

Data Hold/MAX/MIN recording mode

Auto Power Off

Wide capacitance range

Diode Check & Continuity Test
