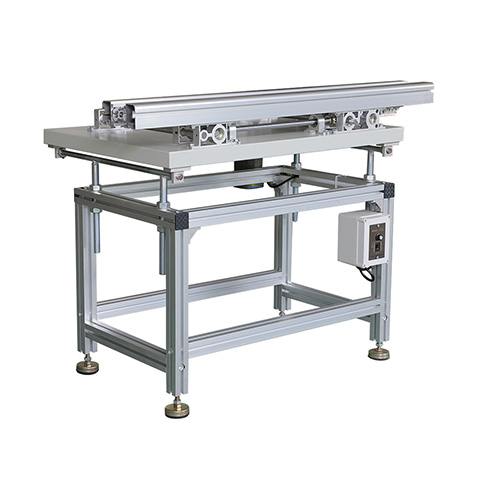

Censtar BF-L-BN 波形进料焊计
制造商: Censtar Model: BF-L-BN - 报价要求
- 报价要求
- 联系
Dimension(mm): 800*600*1100
PCB size(mm): 50*50-445*330
Convey type: 35B Nylon chain or specify
Convey speed: 0.5-20m/min or specify
Power supply: AC 220V ; single phase
Power: Max 100VA
PCB direction: L-R or R-L
Weight: 35kg
This equipment is used for Wave solder infeed PCB conveyor
Features
1.It is using before the wave soldering machine, fulfill the automatic of the DIP production line.
2.Width and speed are adjustable.
3.Applies to the chain conveyor, running smooth and longer lifespan.
4.Green belt with hole and anti-skidding belt are optional.
5.Using in the THT production line, connect the wave soldering machine and the plug-in lines. Unload the PCBA assembly after the soldering.
6.The cooling fan can be set to cool down the PCB board.
