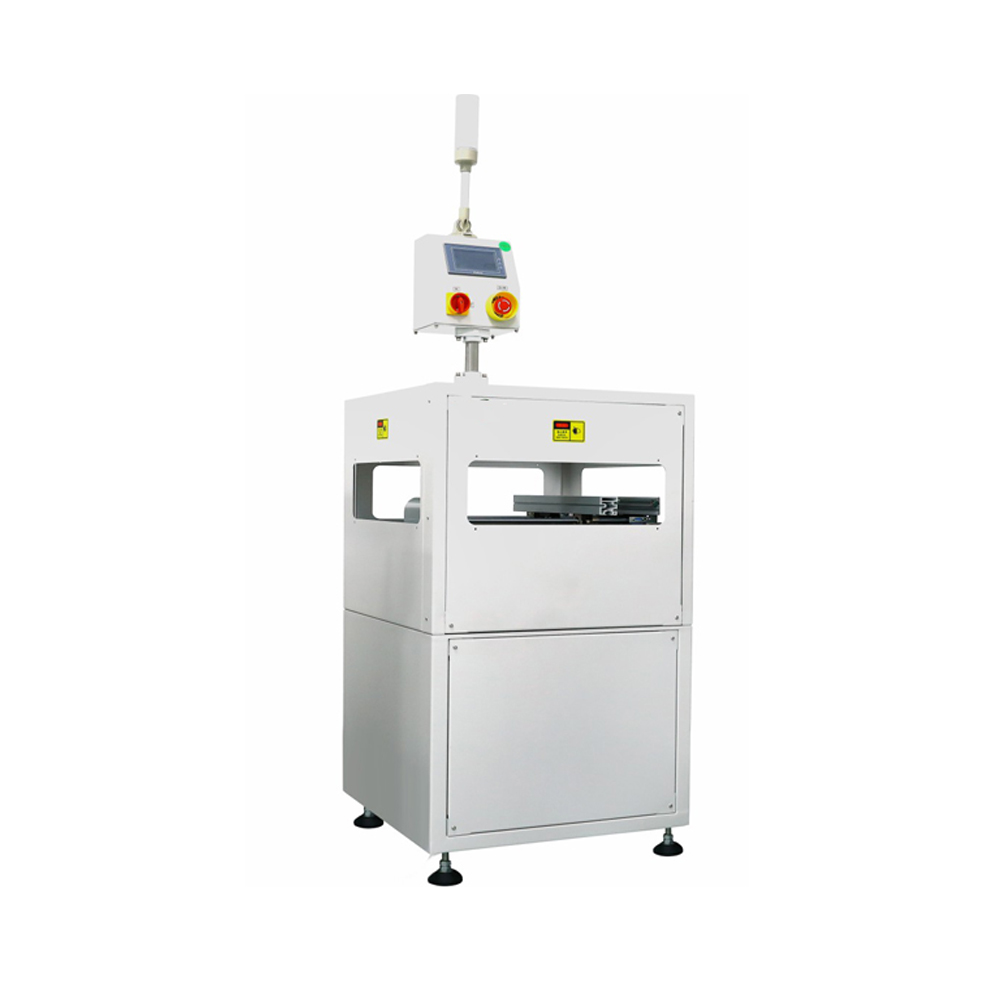

Censtar CN-L-N PCB Turn Conveyor (600 * 650 * 1200mm, 50 * 50-445 * 330mm)

Dimension(L*W*H):        600*650*1200mm

PCB size(L*W):        50*50-445*330mm

Quantity of rail:        Single rail

Belt type:        4mm flat belt

Load bearing:        2kg/PCB

Convey speed:        0.5-20m/min or specify

Transport height:        900±20mm(or custimzie)

Cycle time:         10 Seconds or specity

Power supply:        AC 220V±10V, 50/60HZ

Power:        Max 250VA

Air prssure:        4-6bar

Air consumption:        10itr/min max

Screen size:         7 inch

PCB thickness        Minimum :0.4mm

Transport direction:        L-R or R-L

CE:         Yes

PLC:        Yes

SMEMA:        Yes

Weight:        170kg


This unit is used to redirect PCBs flow into different channels in a production line (rotate 90 degrees, 180 degrees, 270 degrees).


1.User friendly 'soft-touch' LED control membrance control panel

2.Enclosed design with built-in torque limiter ensures highest level of safety

3.Top cover can be opened for easy access to hardware during maintance

4.Parallei and smooth wdth adjustment(leadscrew)

5.Steady and precise move(Stepper motor)

6.Minimize transmission clearance clearance between conveyor

7.Diferent sizes available upon request
